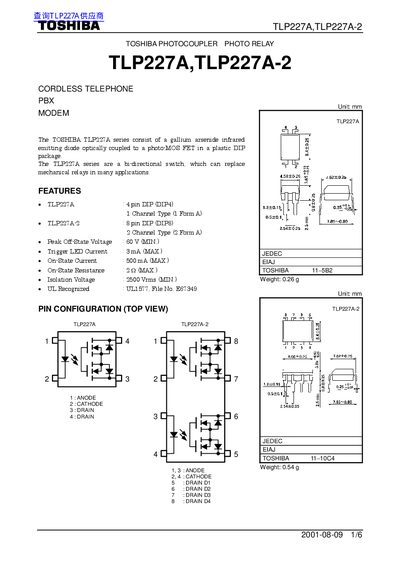

Toshiba TLP227A/TLP227A-2 Optocoupler Datasheet
The TLP227A series are gallium‑arsenide infrared emitting diode optocouplers with a photo‑MOSFET in a plastic DIP package. They function as bi‑directional switches that can replace mechanical relays in many applications.
The datasheet lists key specifications such as a peak off‑state voltage of 60 V, on‑state current up to 500 mA, isolation voltage of 2500 Vrms, and operating temperature range from –20 °C to 65 °C, along with recommended supply voltage and detailed electrical characteristics.
Toshiba TLP227A-2 specifications
| Peak Off‑State Voltage | 60 V (MIN) |
|---|---|
| On‑State Current | 500 mA (MAX) |
| Isolation Voltage | 2500 Vrms (MIN) |
| Forward Current (IF) | 50 mA |
| Supply Voltage (Vpp) | 48 V (MAX) |
| Operating Temperature | -20 °C to 65 °C |
| Storage Temperature Range | -55 °C to 125 °C |
