TLP2200 is a photocoupler produced by Toshiba Corporation. It consists of a GaAℓAs light emitting diode and integrated high gain, high speed photodetector. It is 8-lead DIP package. The detector has a three-state output stage that eliminates the need for pull-up resistor, and built-in schmitt trigger. The detector IC has an internal shield that provides a guaranteed common mode transient immunity of 1000V/μs.
The TLP2200 is a GaAs light‑emitting diode and high‑gain, high‑speed photodetector packaged in an 8‑lead DIP. It offers an isolated bus driver with a three‑state output, eliminating the need for external pull‑up resistors and providing up to 2500 Vrms isolation.

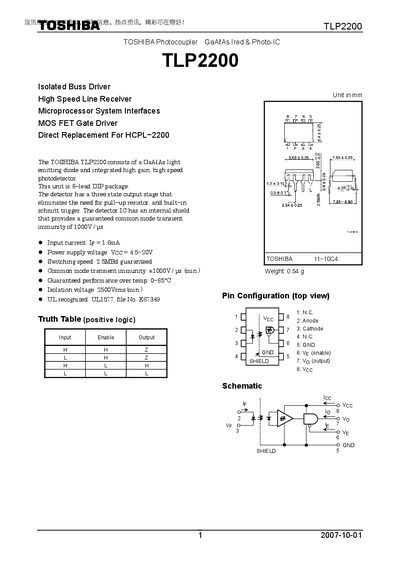

The document lists recommended operating conditions, absolute maximum ratings, switching characteristics, and test circuits, and it includes safety and usage restrictions for reliable integration in electronic designs.
