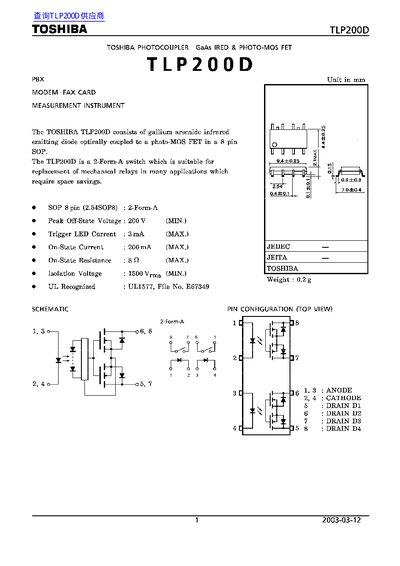

Toshiba TLP200D Photocoupler Datasheet
The TLP200D is a GaAs infrared emitting diode optically coupled to a photo‑MOS FET in an 8‑pin SOP package. It functions as a 2‑Form‑A switch suitable for replacing mechanical relays where space savings are required.
The document lists key electrical characteristics such as a 200 V off‑state voltage, 200 mA on‑state current, 1500 V isolation voltage, and operating temperature range of –40 °C to 85 °C, together with recommended operating conditions and restrictions on product use.
Toshiba TLP200D specifications
| Peak Off‑State Voltage | 200 V (MIN.) |
|---|---|
| On‑State Current | 200 mA (MAX.) |
| Isolation Voltage | 1500 V (MIN.) |
| Forward Current (Ip) | 50 mA |
| Reverse Voltage (VR) | 5 V |
| Operating Temperature Range | -40 °C to 85 °C |
| Weight | 0.2 g |
| UL Recognition | UL1577 |
All Toshiba TLP200D documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum isolation voltage of the TLP200D?
The datasheet specifies a minimum isolation voltage of 1500 V.
What supply voltage range is recommended for the TLP200D?
The recommended supply voltage is 150 V to 200 V.
What is the maximum off‑state voltage rating?
The TLP200D can withstand a peak off‑state voltage of at least 200 V.
What isolation voltage does the device provide?
The isolation voltage is rated at a minimum of 1500 Vrms.
What is the isolation voltage of the TLP200D?
The isolation voltage is specified as a minimum of 1500 V.
What is the maximum forward current rating?
The maximum forward current (I_F) is rated at 50 mA.
