TC7W74F/FU/FK is a fast CMOS D-type flip flop from Toshiba with low power consumption, high noise margin, high fan-out, symmetrical output impedance, balanced delay time and wide operating voltage range.
The TC7W74F, TC7W74FU and TC7W74FK are silicon‑gate D‑type flip‑flops with preset and clear inputs. They feature low power consumption, high speed operation, wide voltage range and high fan‑out capability.

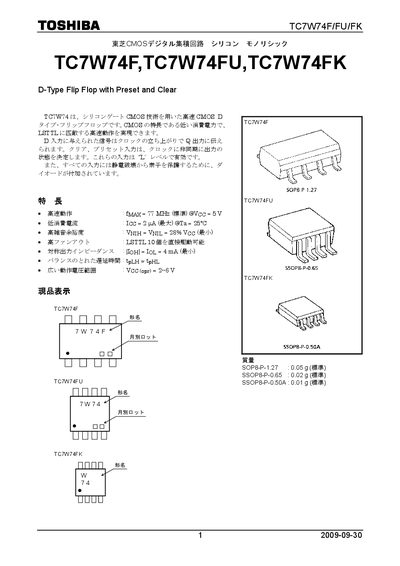

The document provides absolute maximum ratings, operating ranges, electrical and timing characteristics, AC performance, package dimensions and handling instructions for the three package variants (SOP‑8, SSOP‑8 and SSOP‑8‑0.50 mm). This manual is written in Japanese.
| Supply voltage (VCC) range | 2‑6 V |
|---|---|
| Maximum clock frequency | 77 MHz |
| Input leakage current | 2 nA (max) @ 25 °C |
| Package type (TC7W74F) | SOP8‑P‑1.27, mass 0.05 g |
The device operates with a supply voltage (VCC) between 2 V and 6 V.
The maximum clock frequency is up to 77 MHz.
The input leakage current is 2 nA (maximum) at 25 °C.
