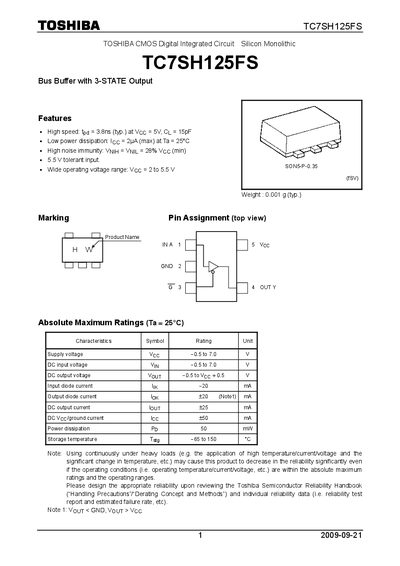

The TC7SH125FS is a CMOS digital integrated circuit bus buffer with 3‑state output, offering high speed (tpg = 3.8 ns typical) and low power dissipation (2 µA max). It features 5.5 V tolerant inputs and operates over a wide supply range, making it suitable for general electronics applications.
The document lists absolute maximum ratings, operating ranges, DC and AC electrical characteristics, package dimensions, and important usage restrictions. Designers are advised to consult Toshiba's reliability handbook and adhere to the stated limits for temperature, voltage, and current to ensure reliable operation.
| Supply voltage range | 2.0 to 5.5 V |
|---|---|
| Input voltage range | 0 to 5.5 V |
| Output voltage range | 0 to Vcc |
| Operating temperature | -40 to 85 °C |
| Propagation delay (tpLH) | 13.0 ns |
| Power dissipation | 50 mW |
| Package type | SONS5-P-0.35 |
| Weight | 0.001 g (typ.) |
The device operates with a supply voltage (Vcc) from 2.0 V to 5.5 V.
Typical power dissipation is 50 mW.
It is rated for operation from –40 °C to 85 °C.
