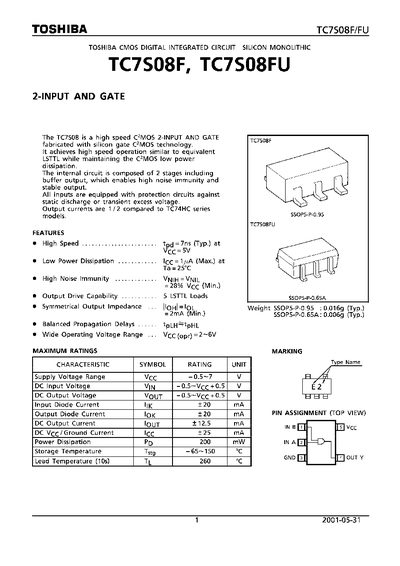

The TC7S08F/FU is a high‑speed CMOS 2‑input AND gate fabricated with silicon‑gate technology. It offers low power dissipation, high noise immunity, and output currents that are half of comparable TC74HC series devices.
The document provides detailed specifications such as supply voltage range, propagation delays, package dimensions, and recommended operating conditions, along with usage restrictions for safety‑critical applications.
| Supply Voltage Range (Vcc) | 2~6 V |
|---|---|
| Input Voltage (VIN) | 0~Vcc |
| Output Voltage (VOUT) | 0~Vcc |
| Operating Temperature | -40~85 °C |
| Typical Output Transition (tTLH) | 5 ns |
| Package Weight (SSOP5‑P‑0.95) | 0.016 g (typ.) |
| Package Weight (SSOP5‑P‑0.65A) | 0.006 g (typ.) |
The device operates with a supply voltage (Vcc) from 2 V to 6 V.
The recommended operating temperature is from –40 °C to +85 °C.
Its output currents are half of those of the TC74HC series models.
