Start here

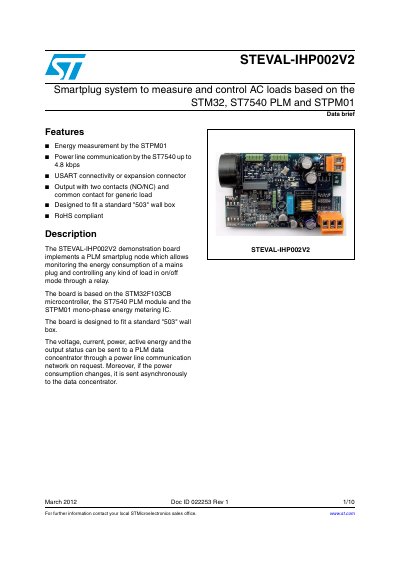

ST STEVAL-IHP002V2 Smartplug system to measure control AC loads based on the STM32 ST7540 PLM STPM01 handbook
The STEVAL-IHP002V2 is a demonstration board that implements a PLM smartplug node. It allows for the monitoring of energy consumption of a mains plug and controls any kind of load in on/off mode through a relay. The board is designed to fit a standard "503" wall box and is RoHS compliant.
Read onlineSTMicroelectronics STEVAL-IHP002V2 specifications
| Microcontroller | STM32F103CB |
|---|---|
| PLM Module | ST7540 |
| Energy Metering IC | STPMO01 |
| Communication Speed | up to 4.8 kbps |
| Output Contacts | two contacts (NO/NC) and common contact |
| Wall Box Standard | "503" |
All STMicroelectronics STEVAL-IHP002V2 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
- ST AN3970 handbook 33 p
Questions answered in these manuals
What is the primary function of the STEVAL-IHP002V2?
The demonstration board implements a PLM smartplug node that monitors energy consumption and controls loads in on/off mode through a relay.
What physical enclosure is the board designed to fit?
The board is designed to fit a standard "503" wall box.
What is the purpose of this guide?
The purpose is to help the user fully use the PLM smartplug demonstration board in a network with other smartplug boards and a data concentrator.
From: ST AN3970 handbook
What safety precautions are required when using the board?
The board must be used only by expert technicians due to high voltage (220 Vac), and a mains insulation transformer is mandatory for debugging or testing.
From: ST AN3970 handbook
