Start here

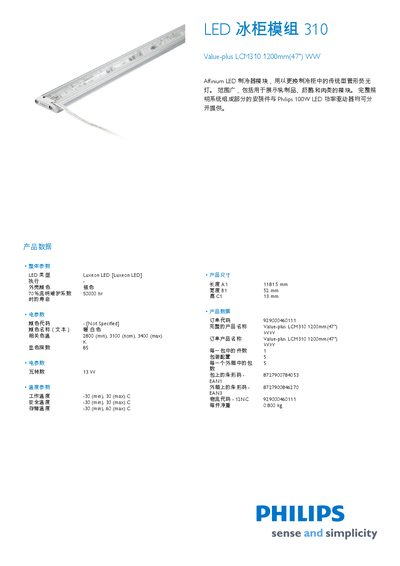

Philips LCM310 LED Freezer Module Product Leaflet
The Philips LCM310 is a 1200 mm (47‑inch) wide‑width LED freezer lighting module designed for commercial refrigeration. The leaflet lists its optical performance, lifetime, and environmental limits, and notes compatibility with Philips 100WY LED power supplies.
Key specifications include color temperature range, CRI, LED lifetime, operating temperature, physical dimensions, weight, and packaging barcodes. Packaging details such as unit count per box and logistics codes are also provided. This manual is written in Chinese.
Philips LCM310 specifications
| Color temperature | 2800 K min – 3400 K max (3100 K nominal) |
|---|---|
| LED lifetime | 50 000 h |
| Operating temperature range | -30 °C min – 30 °C max |
| Length | 1181.5 mm |
| Weight | 0.800 kg |
All Philips LCM310 documents by type
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What is the color temperature range of the Philips LCM310 LED freezer module?
It operates from 2800 K minimum to 3400 K maximum, with a nominal value of 3100 K.
How long is the LED expected to last?
The LED is rated for a lifetime of 50 000 hours.
What must be done before installing, maintaining, or cleaning the module?
Always switch off or disconnect the power and follow the appropriate safety procedures.
From: Philips Affinium LED Cooler Modules Value-plus and Vision-plus LCM310 Installation Guide
What type of power source should the module be connected to?
It must be connected to a class II power source (Philips LED power driver) with limited energy supply.
From: Philips Affinium LED Cooler Modules Value-plus and Vision-plus LCM310 Installation Guide
