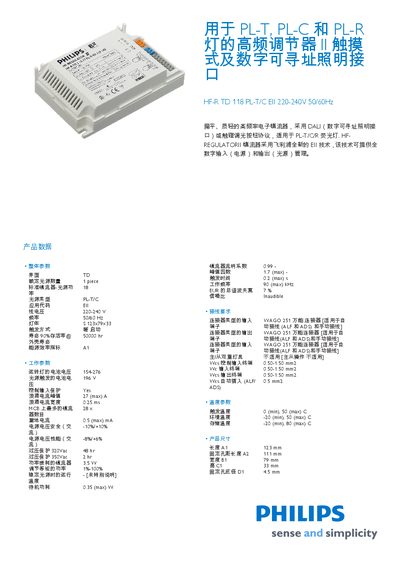

HF-R TD 118 PL-T/C EII 220-240V 50/60Hz is a high-frequency electronic ballast from Philips. It is suitable for PL-T/C/R fluorescent lamps. The ballast supports DALI (digital addressable lighting interface) or touch dimming button protocol, and supports full digital input (power) and output (light source) management.
The HF-RTD 118 PL‑T/C is a high‑frequency electronic ballast that supports DALI (Digital Addressable Lighting Interface) or touch‑dim button protocols for PL‑T, PL‑C and PL‑R fluorescent lamps. It features Philips' Ell technology for full digital input and output management.
Key data include a rated line voltage of 220‑240 V AC, operating frequency up to 90 kHz, dimensions of 123 mm × 79 mm × 33 mm, and compliance with multiple EMC, safety and environmental standards such as EN 55015, IEC 61347‑2‑3 and ISO 14001. This manual is written in Chinese.
| Rated line voltage | 220‑240 V AC |
|---|---|
| Frequency | 50/60 Hz |
| Maximum input current | 27 A (max) |
| Trigger time | 0.2 s (max) |
| Working frequency | 90 kHz (max) |
| Maximum surge current | 0.5 mA (max) |
| Trigger temperature range | 0 °C – 50 °C |
| Storage temperature range | -20 °C – 80 °C |
| Length (A1) | 123 mm |
| Width (B1) | 79 mm |
| Height (c1) | 33 mm |
It is rated for 220‑240 V AC line voltage.
The maximum trigger time is 0.2 seconds.
