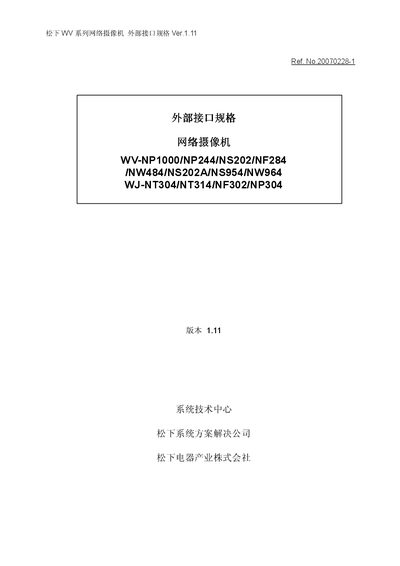

Panasonic WV series network camera external interface specifications introduces the CGI command set of network cameras, including WV-NP1000/NP244/NS202/NF284 /NW484/NS202A/NS954/NW964 WJ-NT304/NT314/NF302/NP304
This document provides the external interface specifications for the Panasonic WV series network cameras, covering models such as WV‑NP1000, NP244, NS202, NF284, INW484, NS202A, NS954, NW964, WJ‑NT304, NT314, NF302 and NP304. It lists the supported CGI commands, video and audio stream formats, and configuration options for each model.
The specification includes detailed tables of CGI parameters for video transmission, camera control, and setting changes, as well as information on alarm notifications, user access limits, and frame‑rate settings. It serves as a reference for developers and integrators who need to configure or program these cameras in networked environments. This manual is written in Chinese.
| Maximum frame rate for WV‑NP1004 (full scan mode) | 30 fps (changed to 15 fps) |
|---|---|
| Audio transmission CGI parameter availability | Only NS202 supports the audio transmission mode |
| Daylight saving time CGI command | Supported via "Daylight saving (夏合时) 设置" |
Only the NS202 model supports the audio transmission CGI parameter.
The maximum frame rate is 30 fps, later changed to 15 fps for full scan mode.
Use the CGI command "Daylight saving (夏合时) 设置" to enable daylight saving time.
The CGI command "Request JPEG video transmission" is used for JPEG video streams.
