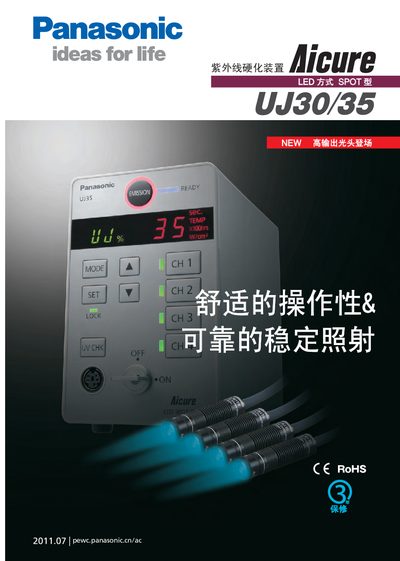

Panasonic UJ30/UJ35 UV LED Curing Device User Manual
The Panasonic UJ30/UJ35 is a compact UV LED curing system that provides high‑output, stable UV irradiation for resin bonding and fixing. It features temperature‑feedback control, up to four interchangeable LED heads, and optional external control via RS‑232C or parallel signals.
The manual explains basic operation, parameter setting, safety precautions, maintenance, and warranty information. It also lists technical specifications such as UV intensity, wavelength, power consumption, dimensions and LED lifetime. This manual is written in Chinese.
Panasonic UJ30 specifications
| Maximum UV intensity (365 nm) | 10,000 mW/cm² |
|---|---|
| Maximum UV intensity (385 nm) | 12,800 mW/cm² |
| Operating voltage | 5‑24 VDC |
| Maximum output current | 100 mA |
| Power consumption (full load) | < 60 VA at 100 VAC |
| Device dimensions | 80 mm × 125 mm × 140 mm |
| Number of controllable LED heads | 4 |
Source: Panasonic UJ30/UJ35 UV LED Curing Device User Manual
All Panasonic UJ30 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many LED heads can be controlled independently?
A single controller can independently set up to four LED heads.
What UV wavelengths are available?
The device provides UV light at 365 nm and 385 nm.
How many LED channels can be programmed simultaneously?
Up to eight LED channels can be set for independent exposure control.
How is the device controlled via RS232C?
The RS232C port accepts external commands to start, stop, and adjust UV exposure parameters.
