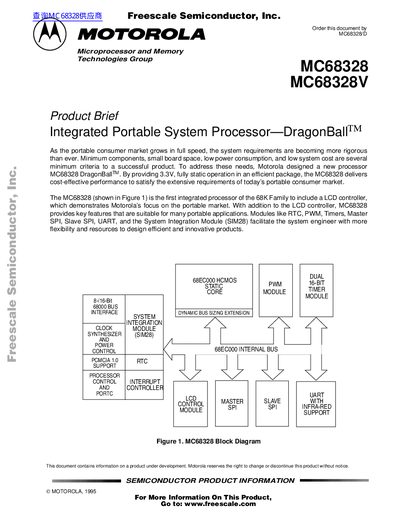

MOTOROLA MC68328/MC68328V handbook(1)
The document introduces the MC68328 DragonBall, an integrated processor designed for the portable consumer market. It features a static 68EC000 core with full compatibility to the MC68000 family, offering 32-bit addressing and low power consumption through fully static HCMOS technology.
Key on-chip modules include a System Integration Module (SIM28) for glueless memory interfacing, an LCD controller, UART with IrDA support, dual SPI ports, timers, PWM, and a real-time clock. The processor operates at up to 16.67 MHz with voltages of 3.3V or 5V in a compact 144-lead TQFP package.
Motorola MC68328 specifications
| Processor Core | Static 68EC000 Core Processor |
|---|---|
| Address Bus Width | 32-Bit External and Internal |
| Data Bus Width | 16-Bit On-Chip |
| Performance | 2.7 MIPS at 16.67-MHz |
| Operating Voltages | 3.3V or 5V |
| Package Type | 144-Lead Thin Quad Flat Pack (TQFP) |
All Motorola MC68328 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What operating voltages does the processor support?
The device supports operation at 3.3V and 5V.
What is the maximum processor clock frequency?
The processor operates at a clock speed up to 16.67 MHz.
What is the primary application for the MC68328?
It is designed for the portable consumer market to satisfy requirements for minimum components, small board space, low power consumption, and low system cost.
Does the MC68328 include an LCD controller?
Yes, it is the first integrated processor of the 68K Family to include a LCD controller.
