The RA60H1317M1A is a 60-watt RF MOSFET Amplifier Module for 12.5-volt mobile radios that operate in the 136- to 174-MHz range.

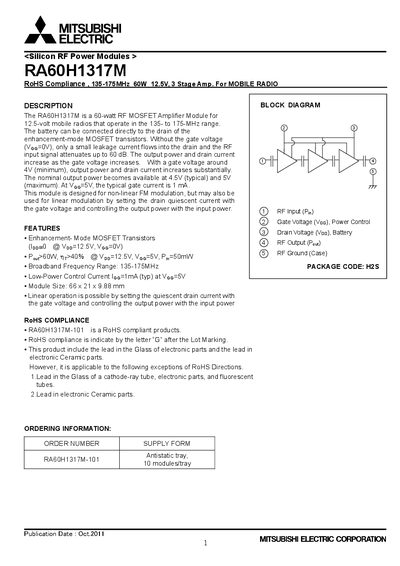

The RA60H1317M RF Power Module from Mitsubishi Electric delivers up to 60 W output in the 135‑175 MHz band, powered from a 12.5 V supply. It uses a three‑stage MOSFET amplifier architecture and can operate in both non‑linear FM and linear AM modes.
The module is supplied in a compact 66 × 21 × 9.88 mm alumina package, includes a plastic protective cap, and requires careful thermal management and ESD protection. Recommended mounting uses a flat heat sink with an athermal compound, M3 screws torqued to 4‑6 kgf‑cm, and soldering after the module is secured.
| Frequency Range | 135 – 175 MHz |
|---|---|
| Output Power | 60 W |
| Supply Voltage | 12.5 V |
| Gate Control Current | 1 mA (typical) |
| Package Size | 66 × 21 × 9.88 mm |
| Input Power (Pin) | 100 mW |
| Input VSWR | 3:1 |
| Operating Temperature Range (Case) | -30 °C to +110 °C |
| Storage Temperature Range | -40 °C to +110 °C |
Typical nominal output power is available at a gate voltage of about 4.5 V, with a maximum of 5 V.
RoHS compliance is indicated by the letter “G” after the lot marking.
