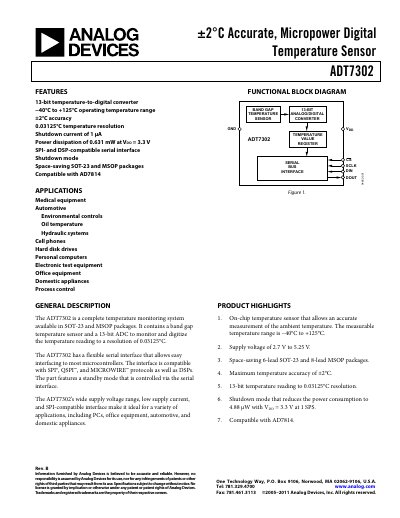

Analog Devices ADT7302 Micropower Digital Temperature Sensor Product Handbook
The ADT7302 is a complete temperature monitoring system offered in space‑saving SOT‑23 and MSOP packages. It integrates a band‑gap temperature sensor with a 13‑bit ADC, delivering ±2 °C accuracy and a resolution of 0.03125 °C. The device features a low‑power standby mode and a flexible serial interface compatible with SPI, QSPI, MICROWIRE, and DSP protocols.
The handbook details electrical specifications, pin‑out diagrams, timing diagrams, mounting recommendations, and ordering information. It also includes typical performance curves, absolute maximum ratings, and guidelines for supply decoupling and thermal mounting, helping designers integrate the sensor into medical, automotive, industrial, and consumer applications.
Analog Devices ADT7302 specifications
| Temperature Accuracy | ±2 °C |
|---|---|
| Temperature Resolution | 0.03125 °C |
| Supply Voltage | 2.7 V to 5.25 V |
| Supply Current (Normal Mode) | 1.6 mA to 2.2 mA |
| Shutdown Current | 0.2 µA to 1 µA |
| Power Dissipation (Normal Mode) | 631 µW (typ at 3.3 V) |
| Operating Temperature Range | −40 °C to +125 °C |
Source: Analog Devices ADT7302 Micropower Digital Temperature Sensor Product Handbook
All Analog Devices ADT7302 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature resolution of the ADT7302?
The sensor provides a temperature resolution of 0.03125 °C.
From: Analog Devices ADT7302 Micropower Digital Temperature Sensor Product Handbook
What is the shutdown current of the ADT7302?
In shutdown mode the device draws between 0.2 µA and 1 µA, depending on supply voltage.
From: Analog Devices ADT7302 Micropower Digital Temperature Sensor Product Handbook
What is the temperature resolution of the ADT7302?
The ADT7302 provides a temperature resolution of 0.03125 °C.
How much current does the ADT7302 draw in shutdown mode?
In shutdown mode the device draws only 1 pA of current.
