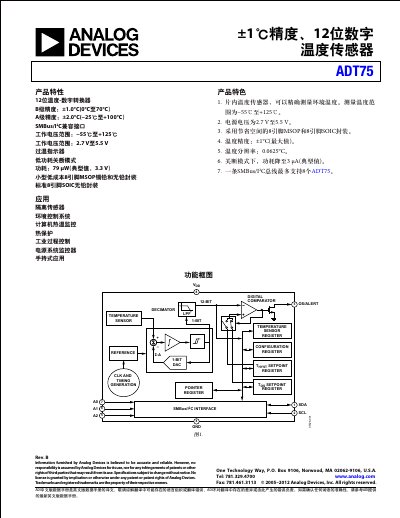

Analog Devices ADT75 12-Bit Digital Temperature Sensor Datasheet
The ADT75 is a complete temperature monitoring system that integrates a bandgap temperature sensor and a 12-bit analog-to-digital converter (ADC). It is available in 8-lead MSOP and SOIC packages and is pin and register compatible with the LM75 and AD7416 devices. The device features a resolution of 0.0625°C and supports a supply voltage range of 2.7 V to 5.5 V. This manual is written in Chinese.
Read onlineAnalog Devices ADT75 specifications
| Accuracy (Class B, 0°C to 70°C) | ±1.0°C |
|---|---|
| Accuracy (Class A, -25°C to +100°C) | ±2.0°C |
| ADC Resolution | 12-bit |
| Temperature Resolution | 0.0625°C |
| Operating Temperature Range | -55°C to +125°C |
| Supply Voltage Range | 2.7 V to 5.5 V |
| Package Options | 8-lead MSOP, 8-lead SOIC |
Source: Analog Devices ADT75 12-Bit Digital Temperature Sensor Datasheet
All Analog Devices ADT75 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the temperature resolution of the ADT75?
The ADT75 provides a temperature resolution of 0.0625°C.
From: Analog Devices ADT75 12-Bit Digital Temperature Sensor Datasheet
Is the ADT75 compatible with other temperature sensors?
Yes, the ADT75 is pin and register compatible with the LM75 and AD7416.
From: Analog Devices ADT75 12-Bit Digital Temperature Sensor Datasheet
What supply voltage range does the ADT75 require?
It requires a supply voltage between 3 V and 5.5 V.
What is the current consumption in shutdown mode?
In shutdown mode the device draws typically 3 µA at 3.3 V.
How much current does the ADT75 draw in shutdown mode?
In shutdown mode the device draws about 3 µA.
How many ADT75 devices can share the same SMBus/I²C bus?
Up to eight ADT75 devices can be connected to a single bus.
