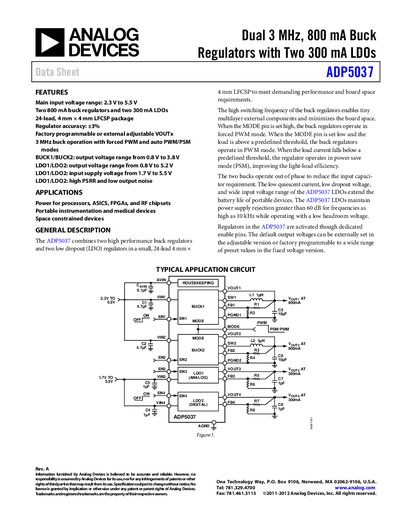

Analog Devices ADP5037 Datasheet
The ADP5037 combines two high‑performance buck regulators and two low‑dropout (LDO) regulators in a compact 24‑lead 4 mm × 4 mm LFCSP package. It offers a 3 MHz buck switching frequency, 800 mA buck current capability, and 300 mA LDO current, with programmable or fixed output options.
The document provides electrical specifications, pin descriptions, typical application circuits, thermal data, ordering information, and mechanical dimensions, enabling designers to integrate the device into portable, space‑constrained applications such as processors, ASICs, FPGAs, and medical instruments.
Analog Devices ADP5037 specifications
| Input voltage range | 2.3 V to 5.5 V |
|---|---|
| Buck regulator output voltage range | 0.8 V to 3.8 V |
| LDO output voltage range | 0.8 V to 5.2 V |
| Maximum buck current per channel | 800 mA |
| Maximum LDO current per channel | 300 mA |
| Switching frequency | 3 MHz |
| Package | 24‑lead 4 mm × 4 mm LFCSP |
| Thermal shutdown threshold | 150 °C |
Source: Analog Devices ADP5037 Datasheet
All Analog Devices ADP5037 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the ADP5037?
The device operates from 2.3 V to 5.5 V input.
How much current can each buck regulator deliver?
Each buck regulator can supply up to 800 mA.
What is the input voltage range for the ADP5037?
The device operates from 2.3 V up to 5.5 V input.
How many buck regulators and LDOs are integrated in the ADP5037?
It contains two 800 mA buck regulators and two 300 mA LDOs.
