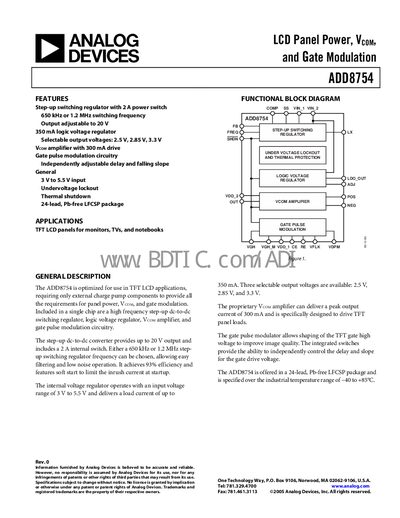

ADD8754 is a step-up switching regulator with 2 A power switch
The ADD8754 integrates a high‑frequency step‑up switching regulator, a 2 A internal power switch, a logic‑level LDO regulator, a Vcom amplifier capable of 300 mA, and a gate‑pulse modulator for TFT LCD panel driving. It supports selectable switching frequencies of 650 kHz or 1.2 MHz and provides an adjustable output up to 20 V.
The device is offered in a 24‑lead Pb‑free LFCSP package, operates over an industrial temperature range (‑40 °C to +85 °C), and includes protection features such as UVLO, thermal shutdown, and ESD sensitivity. Pin configurations and functional block diagrams are provided for system integration.
| Input Voltage Range | 3.0 V – 5.5 V |
|---|---|
| Maximum Output Voltage | 20 V |
| On‑Resistance of Switch | 170 mΩ |
| Peak Current Limit | 2.6 A |
| Oscillator Frequency | 650 kHz or 1.2 MHz |
| Vcom Amplifier Output Current | 300 mA |
| LDO Output Voltage Options | 2.5 V, 2.85 V, 3.3 V |
The device operates with an input voltage from 3.0 V to 5.5 V.
The step‑up regulator can deliver up to 20 V output.
The regulator can be set to either 650 kHz or 1.2 MHz.
The LDO can be programmed to 2.5 V, 2.85 V, or 3.3 V.
