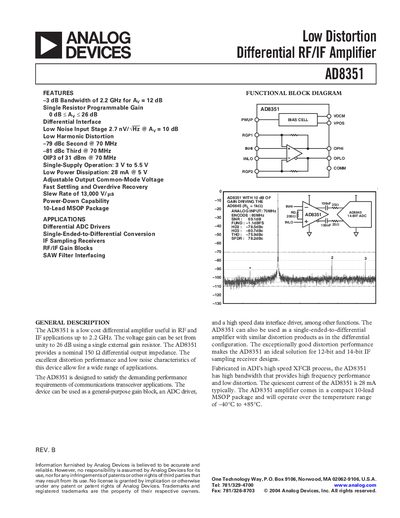

Analog Devices AD8351 Low Distortion Differential RF/IF Amplifier Datasheet
The AD8351 is a low‑distortion differential RF/IF amplifier designed for communications transceiver applications. It offers programmable gain from 0 dB to 26 dB using a single external resistor and operates from a single 3 V to 5.5 V supply.
The device is supplied in a compact 10‑lead MSOP package, supports power‑down mode, and provides features such as low noise (2.7 nV/√Hz at 10 dB gain), high slew rate (13 000 V/µs), and wide temperature operation from –40 °C to +85 °C.
Analog Devices AD8351 specifications
| Supply Voltage | 3 V to 5.5 V |
|---|---|
| Input Common‑Mode Voltage Range | 1.2 V to 3.8 V |
| Output Common‑Mode Offset | 40 mV |
| Gain Accuracy (0‑20 dB) | +1 dB |
| Package | 10‑lead MSOP (RM‑10) |
Source: Analog Devices AD8351 Low Distortion Differential RF/IF Amplifier Datasheet
All Analog Devices AD8351 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the AD8351 support?
The AD8351 operates from a single supply of 3 V to 5.5 V.
From: Analog Devices AD8351 Low Distortion Differential RF/IF Amplifier Datasheet
In which package is the AD8351 available?
The device is offered in a 10‑lead MSOP (RM‑10) package.
From: Analog Devices AD8351 Low Distortion Differential RF/IF Amplifier Datasheet
What supply voltage range does the AD8351 support?
The device operates from 3 V to 5.5 V.
What is the typical quiescent current of the AD8351?
Typical quiescent current is 28 mA at a 5 V supply.
