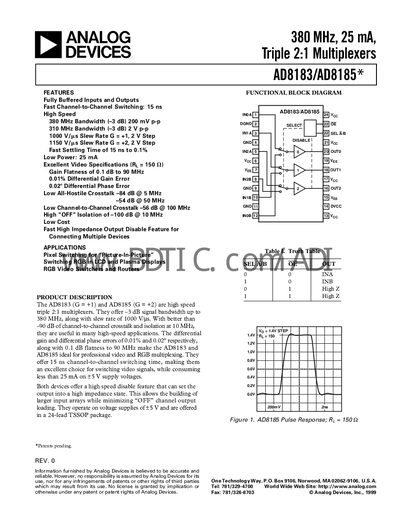

The AD8183 and AD8185 are high-speed triple 2:1 multiplexers with features including fully buffered inputs and outputs, fast channel switching, high-speed bandwidth, low power consumption, and excellent video specifications.
The AD8183 (gain = +1) and AD8185 (gain = +2) are high‑speed triple 2:1 multiplexers designed for professional video and RGB applications. They provide up to 380 MHz -3 dB bandwidth for small‑signal inputs and feature a fast 15 ns channel‑to‑channel switching time while consuming less than 25 mA from a +5 V supply.
Both devices include a high‑impedance disable feature for building larger input arrays, operate from a 4.5 V to 5.5 V supply, and are supplied in a 24‑lead TSSOP package. The datasheet details electrical performance, absolute maximum ratings, and recommended operating conditions.
| -3 dB Bandwidth (Small Signal) | 380 MHz |
|---|---|
| -3 dB Bandwidth (Large Signal) | 310 MHz |
| Slew Rate (G = +1) | 1000 V/µs |
| Slew Rate (G = +2) | 1150 V/µs |
| Settling Time to 0.1 % (2 V step) | 15 ns |
| Supply Voltage Range | 4.5 V to 5.5 V |
| Input Resistance (A/T) | 8 MΩ / 5 MΩ |
| Short‑Circuit Current | 60 mA |
The device provides a 380 MHz -3 dB bandwidth for a 200 mV p‑p small‑signal input.
The devices operate from 4.5 V to 5.5 V supply voltage.
The maximum slew rate is 1000 V/µs for gain +1 and 1150 V/µs for gain +2.
