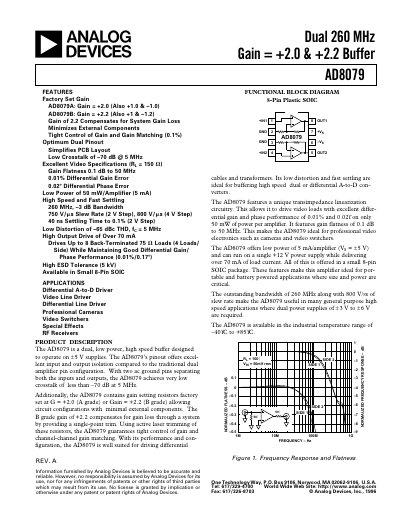

Analog Devices AD8079 Datasheet Rev A
The AD8070 series dual buffer is designed for ±5 V supplies and provides excellent input‑output isolation, low crosstalk (<‑70 dB at 5 MHz) and tight gain matching (0.1%). It features factory‑set gain resistors for +2.0 (A grade) or +2.2 (B grade) operation, a small‑signal bandwidth of 260 MHz and a large‑signal bandwidth of 100 MHz, while consuming only 50 mW per amplifier.
Typical applications include differential video line drivers, A‑to‑D converters, professional cameras and video switchers. The device is supplied in a small 8‑pin SOIC (SO‑8) package and is rated for industrial temperature operation from –40 °C to +85 °C.
Analog Devices AD8079 specifications
| Output Current (typical) | 70 mA |
|---|---|
| Power Supply Operating Range | ±3 V to ±6 V |
| Gain (AD8079A) | +2.0 |
| Gain (AD8079B) | +2.2 |
All Analog Devices AD8079 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What gain values are available for the AD8079A and AD8079B?
The AD8079A is factory‑set to a gain of +2.0, while the AD8079B is set to a gain of +2.2.
What is the maximum output current the AD8079 can drive?
Each amplifier can deliver up to 70 mA of output current.
What gain does the AD8079A provide?
The AD8079A has a factory‑set gain of +2.0 (also selectable as +1.0 or –1.0).
What gain does the AD8079B provide?
The AD8079B has a factory‑set gain of +2.2 (also selectable as +1 or –1.2).
