Start here

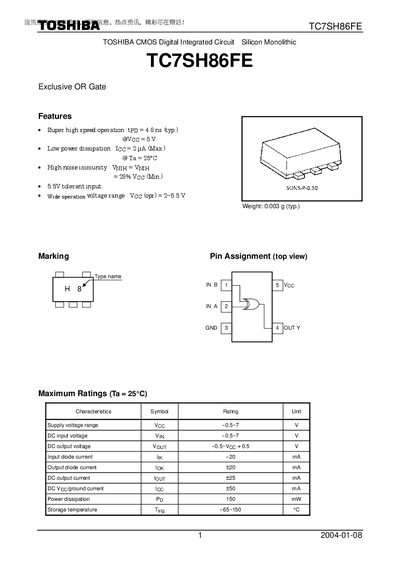

Toshiba TC7SH86FE CMOS Digital Integrated Circuit Datasheet
The Toshiba TC7SH86FE is a CMOS exclusive‑OR gate offering high‑speed operation with a typical propagation delay of 4.8 ns. The document provides detailed electrical specifications, including supply voltage range, input/output currents, power dissipation, and leakage currents, as well as AC characteristics and package dimensions.
Additional sections cover the logic diagram, truth table, recommended operating conditions, and important restrictions on product use, emphasizing proper design practices and compliance with safety and regulatory requirements.
Toshiba TC7SH86FE specifications
| Supply voltage range | 2 V ~ 5.5 V |
|---|---|
| Typical propagation delay (tpp) | 4.8 ns |
| Power dissipation | 150 mW |
| Maximum output current | 25 mA |
| Input leakage current (typ.) | -50 pA |
| Weight (typ.) | 0.003 g |
Source: Toshiba TC7SH86FE CMOS Digital Integrated Circuit Datasheet
All Toshiba TC7SH86FE documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the TC7SH86FE?
The typical propagation delay (tpp) is 4.8 ns.
From: Toshiba TC7SH86FE CMOS Digital Integrated Circuit Datasheet
What supply voltage range is recommended for the TC7SH86FE?
The recommended supply voltage range is 2 V to 5.5 V.
From: Toshiba TC7SH86FE CMOS Digital Integrated Circuit Datasheet
What is the typical propagation delay of the TC7SH86FE?
The typical propagation delay (tpp) is 4.8 ns.
What supply voltage range does the TC7SH86FE support?
It operates with a supply voltage from 2 V to 5.5 V.
