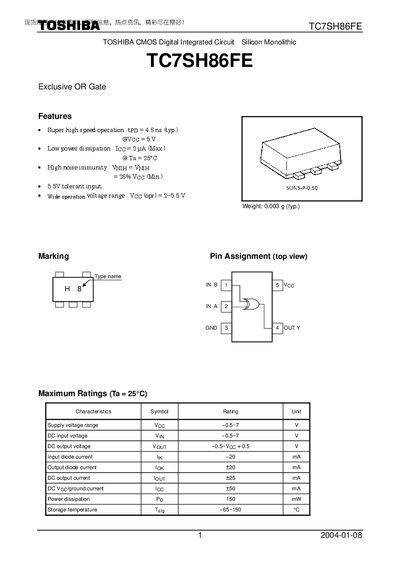

The TC7SH86FE is a CMOS exclusive‑OR gate offering super‑high speed operation with a typical propagation delay of 4.8 ns. It features low power dissipation, a wide operating voltage range (2 V to 5.5 V), and high noise immunity, making it suitable for general electronics applications such as computers, office equipment, and industrial robotics.
The datasheet lists detailed electrical characteristics, maximum ratings, AC performance, package dimensions (SON5‑P‑0.50), and handling guidelines. It also includes a logic diagram, truth table, and restrictions on product use to ensure safe and reliable integration into end‑user designs.
| Supply voltage range | 2 V ~ 5.5 V |
|---|---|
| Typical propagation delay (tpp) | 4.8 ns |
| Power dissipation | 150 mW |
| Weight (typical) | 0.003 g |
| Package type | SON5‑P‑0.50 |
The typical propagation delay (tpp) is 4.8 ns.
It operates with a supply voltage from 2 V to 5.5 V.
The device can dissipate up to 150 mW.
It is supplied in a SON5‑P‑0.50 surface‑mount package.
