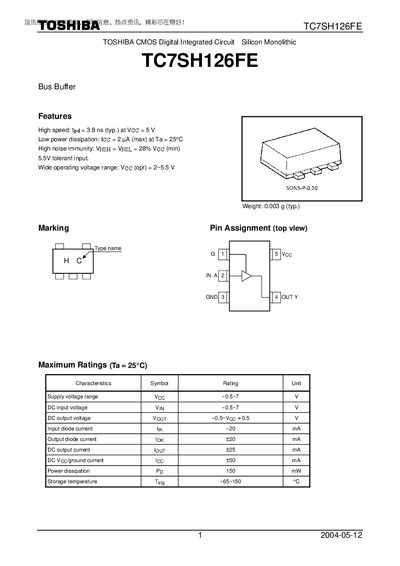

TC7SH126FE is a CMOS digital integrated circuit produced by Toshiba Corporation. It has the characteristics of high speed, low power consumption, high noise immunity and wide operating voltage range.
The TC7SH126FE is a CMOS digital integrated circuit bus buffer offering high‑speed operation with a typical propagation delay of 3.8 ns and low power dissipation. It supports a wide supply voltage range of 2 V to 5.5 V and includes 5‑V tolerant inputs, making it suitable for a variety of electronic applications.
The document lists detailed electrical characteristics, pin assignments, package dimensions (SON5‑P‑0.50), and recommended operating conditions, as well as usage restrictions and safety guidelines for designers integrating this component into their systems.
| Typical propagation delay (tpd) | 3.8 ns |
|---|---|
| Supply voltage range (Vcc) | 2~5.5 V |
| Input voltage range (VIN) | 0~5.5 V |
| Output voltage range (Vout) | 0~Vcc |
| Operating temperature | -40~85 °C |
| Power dissipation | 150 mW |
| Package type | SON5-P-0.50 |
| Weight | 0.003 g (typ.) |
The typical propagation delay is 3.8 ns.
It operates with a supply voltage from 2 V to 5.5 V.
The device is rated for temperatures between –40 °C and 85 °C.
It is supplied in a SON5‑P‑0.50 package.
