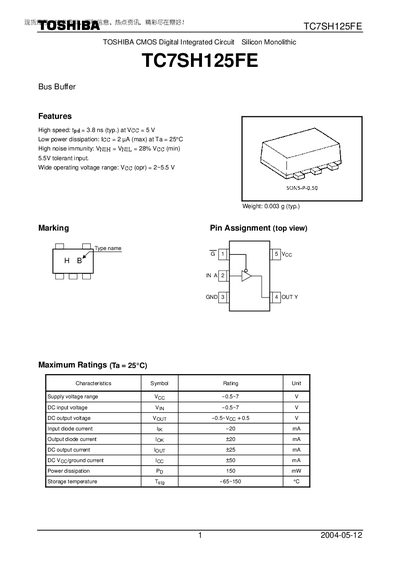

TC7SH125FE is a CMOS digital integrated circuit produced by Toshiba. It has the characteristics of high speed, low power consumption and high noise immunity.
The TC7SH125FE is a CMOS digital bus buffer from Toshiba offering high‑speed operation with a typical propagation delay of 3.8 ns at 5 V and low power consumption (Icc = 2 µA max). It features a wide operating voltage range of 2 V to 5.5 V, 5 V‑tolerant inputs, and high noise immunity.
The document lists detailed electrical parameters, AC characteristics, package dimensions (SON5‑P‑0.50) and handling restrictions. It also includes maximum ratings, pin assignments, and recommended operating conditions for reliable integration in general electronics applications.
| Typical propagation delay (tpd) | 3.8 ns at Vcc=5 V |
|---|---|
| Supply current (Icc) | 2 µA max at 25 °C |
| Supply voltage range | 2 V to 5.5 V |
| Output current | +25 mA |
| Power dissipation | 150 mW |
| Weight | 0.003 g (typ.) |
| Package dimensions | SON5‑P‑0.50 |
| Storage temperature range | -65 °C to 150 °C |
The typical propagation delay is 3.8 ns when powered at 5 V.
It operates from 2 V up to 5.5 V.
The device can source up to +25 mA.
Typical power dissipation is 150 mW.
