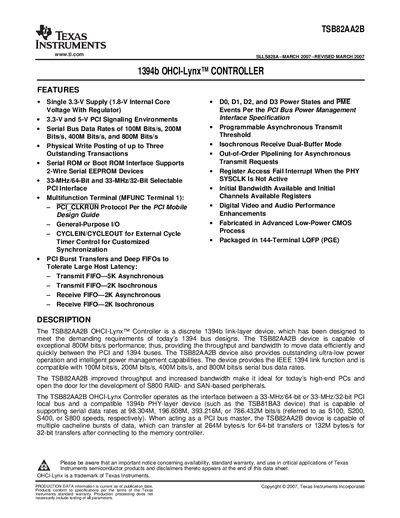

The TSB82AA2B OHCI-Lynx™ Controller is a discrete 1394b link-layer device that provides the functionality of a single-chip 1394b OHCI controller and 1394b peripheral bridge.
The TSB82AA2B OHCI‑Lynx controller is a discrete 1394b link‑layer device designed for high‑throughput PC applications. It supports single 3.3 V supply with an internal 1.8 V core regulator, 3.3 V and 5 V PCI signaling, and serial bus data rates of 100 M, 200 M, 400 M, and 800 M bits/s. The controller includes deep transmit/receive FIFOs, advanced power‑management features, and hardware enhancements for digital video and MPEG streams.
The device is offered in a 144‑terminal LQFP (PGE) package with a quantity of 60 per lot and complies with RoHS‑green specifications (no Sb/Br). Mechanical drawings and packaging information are provided, along with extensive warranty and usage notices for safety‑critical, automotive, and military applications.
| Supply Voltage | Single 3.3 V (1.8 V internal core regulator) |
|---|---|
| PCI Signaling | 3.3 V and 5 V |
| Serial Bus Data Rates | 100 M, 200 M, 400 M, 800 M bits/s |
| PCI Clock Options | 33 MHz/64‑bit or 33 MHz/32‑bit |
| Power Management States | DO, D1, D2, D3 |
| Package Type | 144‑Terminal LQFP (PGE) |
| Package Quantity per Lot | 60 |
| RoHS / Green Classification | Green (RoHS & no Sb/Br) |
