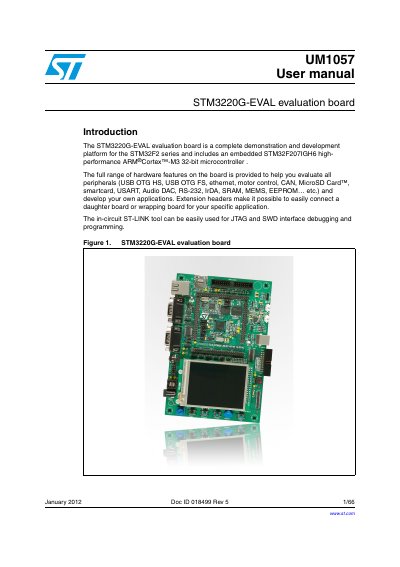

STM3220G-EVAL evaluation board UM1057 User manual
The STM3220G-EVAL evaluation board is a development platform built around the STM32F207IGH6 microcontroller. It provides a full range of peripherals such as USB OTG (HS/FS), Ethernet, CAN, audio DAC, micro‑SD, smart‑card, MEMS, and motor‑control interfaces, plus an on‑board ST‑LINK/V2 debugger.
The manual covers board overview, hardware layout, power‑supply configuration, boot options, connector pin‑outs, schematics and revision history, helping users set up the board and develop applications.
STMicroelectronics STM3220G-EVAL specifications
| Microcontroller | STM32F207IGH6 |
|---|---|
| SRAM | 16 Mbit |
| MicroSD card | 1 Gbyte or more |
| LCD | 3.2" 240x320 TFT color LCD with touch screen |
| Ethernet | IEEE 802.3-2002 compliant |
| Smartcard support | ISO/IEC 14443 type A and B |
Source: STMicroelectronics STM3220G-EVAL Evaluation Board Data Brief
All STMicroelectronics STM3220G-EVAL documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What microcontroller is embedded in the STM3220G-EVAL?
The board includes an embedded STM32F207IGH6 high-performance ARM Cortex-M3 32-bit microcontroller.
From: STMicroelectronics STM3220G-EVAL Evaluation Board Data Brief
Where can I find the demonstration software?
The demonstration software is preloaded in the board's Flash memory, and the latest version is available on the web at www.st.com/mcu.
From: STMicroelectronics STM3220G-EVAL Evaluation Board Data Brief
