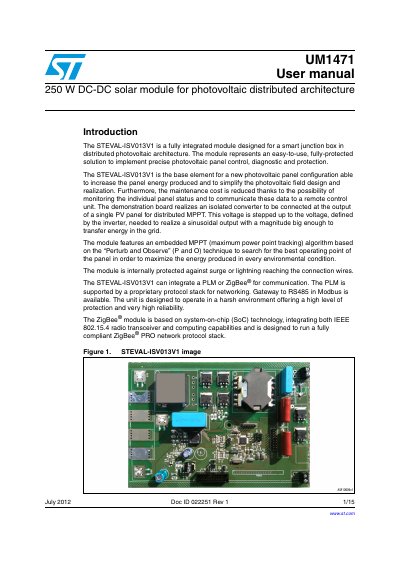

STMicroelectronics STEVAL-ISV013V1 250 W DC-DC Solar Module User Manual
The STEVAL-ISV013V1 is a fully integrated module designed for a smart junction box in distributed photovoltaic architecture. It represents an easy-to-use, fully-protected solution to implement precise photovoltaic panel control, diagnostic, and protection. The module serves as the base element for a new photovoltaic panel configuration able to increase panel energy production and simplify field design.
Read onlineSTMicroelectronics STEVAL-ISV013V1 specifications
| Input DC supply voltage range | 10 to 55 V |
|---|---|
| MPPT input DC voltage range | 24 to 45 V |
| Operating output DC voltage | 350 to 430 V |
| Operating output current | 0.8 A |
| Switching frequency | 35 kHz |
| Peak efficiency | 97.5% |
| European efficiency | 96.6% |
| MPPT efficiency | 99% |
Source: STMicroelectronics STEVAL-ISV013V1 250 W DC-DC Solar Module User Manual
All STMicroelectronics STEVAL-ISV013V1 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the input voltage range for the STEVAL-ISV013V1?
The module operates in an input voltage range from 10 V to 55 V.
From: STMicroelectronics STEVAL-ISV013V1 250 W DC-DC Solar Module User Manual
What is the maximum output voltage?
The operating output DC voltage ranges from 350 V to 430 V.
From: STMicroelectronics STEVAL-ISV013V1 250 W DC-DC Solar Module User Manual
