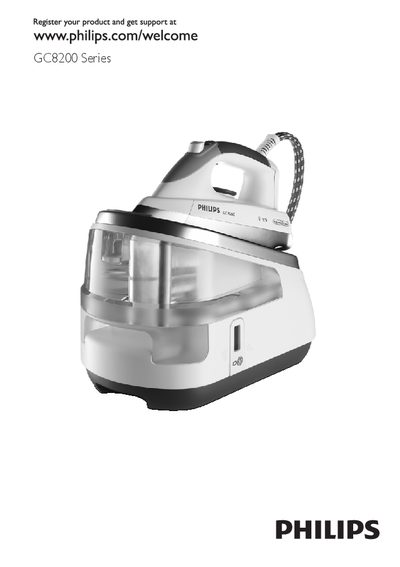

Philips GC8200 Series Pressurized Ironing System User Manual
This manual introduces the Philips GC8200 Series pressurized ironing system, describing its main components such as the supply hose, temperature dial, steam trigger, detachable water tank and safety features. It explains how to register the product and gives an overview of the system’s operation.
The guide covers safe handling, preparation before first use, temperature and steam settings, steam‑lock function, cleaning, maintenance and troubleshooting. Detailed instructions show how to fill the water tank, set the desired temperature, adjust steam levels and resolve common issues.
Philips GC8200 specifications
| Voltage | 220‑240 V |
|---|---|
| Frequency | 50‑60 Hz |
| Power (Iron) | 800 W |
| Power (Boiler) | 1370 W |
| Dimensions (F‑box) | 350 x 350 x 250 mm (L×W×H) |
| Weight (with packing) | 6.4 kg |
| Boiler pressure | 4.5 bar |
| Steam hose length | 1.7 m |
| Cord length | 2.5 m |
| Detachable water tank capacity | 1.4 L |
| Adjustable steam rate | up to 110 g/min |
| Shot of steam | up to 120 g/min |
| Fast heat‑up time | Steam ready in 2 minutes |
All Philips GC8200 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What is the boiler pressure of the GC8220 iron?
The boiler pressure is specified as 4.5 bar.
How much water can the detachable tank hold?
The detachable water tank has a capacity of 1.4 L.
What should I do when the water tank is empty?
When the water tank is empty the water‑tank refill light flashes; remove the tank, fill it with tap water up to the MAX indication and re‑insert it.
From: Philips GC8200 Series Pressurized Ironing System User Manual
