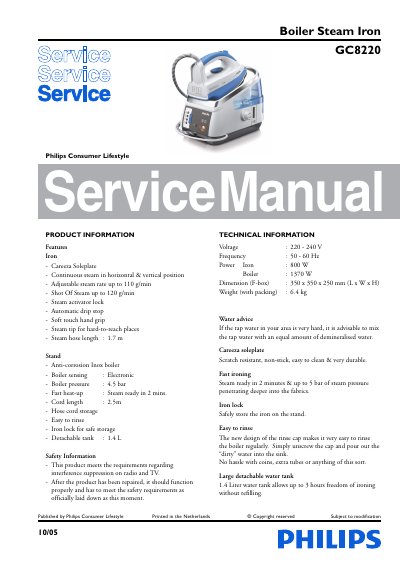

This is the user manual for Philips Steam Iron GC8220
The Philips GC8220 boiler steam iron service manual provides detailed product information, technical specifications, and safety guidelines. It includes step‑by‑step disassembly instructions for the iron, stand, and detachable water tank, as well as exploded views and wiring diagrams.
The manual also contains a comprehensive parts list with service codes, repair instructions, and test procedures to verify proper operation after service. Users can reference specifications such as voltage, boiler pressure, steam rates, and water‑tank capacity to ensure correct maintenance.
| Voltage | 220‑240 V |
|---|---|
| Frequency | 50‑60 Hz |
| Power (Iron) | 800 W |
| Power (Boiler) | 1370 W |
| Dimensions (F‑box) | 350 x 350 x 250 mm (L×W×H) |
| Weight (with packing) | 6.4 kg |
| Boiler pressure | 4.5 bar |
| Steam hose length | 1.7 m |
| Cord length | 2.5 m |
| Detachable water tank capacity | 1.4 L |
| Adjustable steam rate | up to 110 g/min |
| Shot of steam | up to 120 g/min |
| Fast heat‑up time | Steam ready in 2 minutes |
The boiler pressure is specified as 4.5 bar.
The detachable water tank has a capacity of 1.4 L.
It operates on 220‑240 V.
Steam is ready in about 2 minutes.
