This document is the installation manual of Philips DynaFlood LED RGB BCS835/845/855, which introduces the product features, installation method, electrical connection, etc.

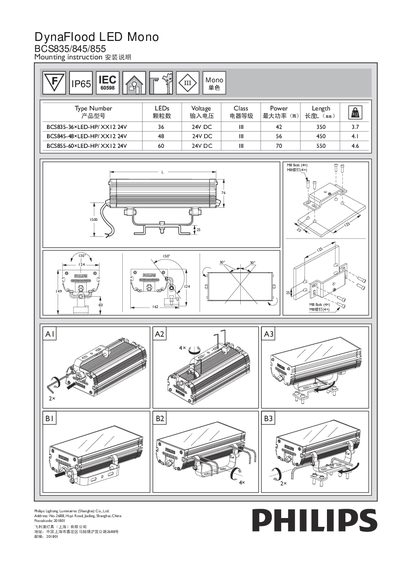

This manual provides step‑by‑step mounting instructions for the Philips DynaFlood LED Mono series (models BCS835, BCS845, BCS855). It lists the LED count, voltage class, power rating and physical dimensions for each model.
The document also details the required external power‑supply unit (24 V DC output), cable types, maximum luminaire loading, optional ports, and safety compliance notes such as the non‑replaceable external cable and EMC requirements. This manual is written in Chinese.
| LED count (BCS835) | 36 |
|---|---|
| LED count (BCS845) | 48 |
| LED count (BCS855) | 60 |
| Input power | 220‑240 V AC |
| Power cable size | 2 × 1.5 mm² |
