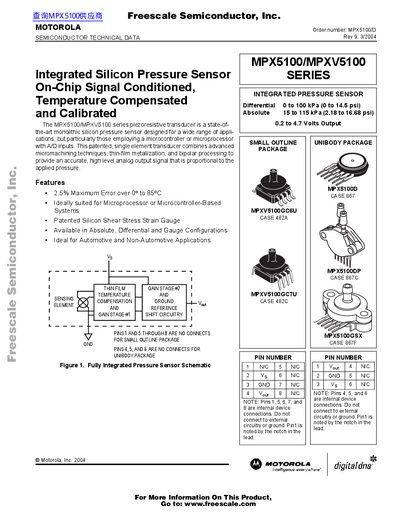

Motorola MPX5100/MPXV5100 Series Integrated Pressure Sensor Datasheet
The Motorola MPX5100/MPXV5100 series are monolithic silicon piezoresistive transducers designed for a wide range of applications, particularly those employing microcontrollers or microprocessors with A/D inputs. These devices combine advanced micromachining techniques and thin-film metallization to provide an accurate, high-level analog output signal proportional to applied pressure.
Read onlineMotorola MPX5100 specifications
| Maximum Pressure (P1 > P2) | 400 kPa |
|---|---|
| Operating Temperature Range | -40° to +125°C |
| Supply Voltage (Vs) | 4.75 to 5.25 Vdc |
| Supply Current (Io) | 10 mAdc |
| Full Scale Output (Vego) | 4.587 to 4.813 Vdc |
| Accuracy | 2.5% |
Source: Motorola MPX5100/MPXV5100 Series Integrated Pressure Sensor Datasheet
All Motorola MPX5100 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum pressure rating for the MPX5100 series?
The maximum pressure rating (P1 > P2) is 400 kPa.
From: Motorola MPX5100/MPXV5100 Series Integrated Pressure Sensor Datasheet
What supply voltage range does the sensor support?
The device operates with a supply voltage between 4.75 Vdc and 5.25 Vdc.
From: Motorola MPX5100/MPXV5100 Series Integrated Pressure Sensor Datasheet
What supply voltage does the MPX5100 require?
The sensor operates from a supply voltage between 4.75 V and 5.25 V.
Which pins are not connected externally?
Pins 4, 5, and 6 are internal device connections and must not be connected to external circuitry.
