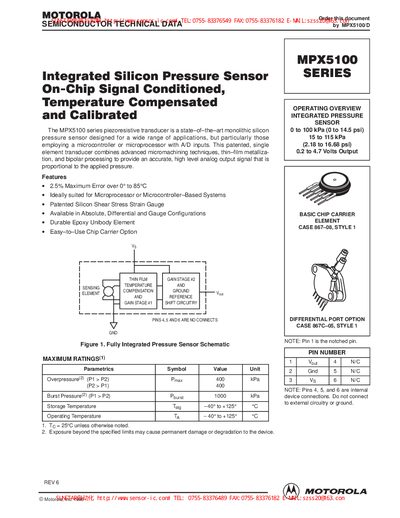

The MPX5100 series piezoresistive transducer is a state–of–the–art monolithic silicon pressure sensor designed for a wide range of applications, but particularly those employing a microcontroller or microprocessor with A/D inputs. This patented, single element transducer combines advanced micromachining techniques, thin–film metalliza- tion, and bipolar processing to provide an accurate, high level analog output signal that is proportional to the applied pressure.
The MPX5100 pressure sensor family provides a monolithic silicon transducer with built‑in amplification, temperature compensation and calibration. It delivers a linear analog voltage proportional to applied pressure and is suited for microcontroller‑based systems.
The document includes electrical ratings, mechanical dimensions, ordering information and pin assignments for absolute, differential and gauge configurations, along with transfer functions and performance specifications.
| Pressure Range (Gauge/Differential) | 0 – 100 kPa |
|---|---|
| Pressure Range (Absolute) | 15 – 115 kPa |
| Supply Voltage (Vs) | 4.75 – 5.25 V |
| Supply Current | 7 – 10 µA |
| Full Scale Output (Differential) | 4.587 – 4.813 V |
| Sensitivity | 45 mV/kPa |
| Response Time | 1.0 ms |
| Overpressure Rating | 400 kPa |
| Burst Pressure | 1000 kPa |
| Operating Temperature | -40 °C to +125 °C |
| Storage Temperature | -40 °C to +125 °C |
| Weight (Basic Element) | 4.0 g |
The sensor operates from a supply voltage between 4.75 V and 5.25 V.
Pins 4, 5, and 6 are internal device connections and must not be connected to external circuitry.
Full‑scale output ranges from 4.587 V to 4.813 V at a 5 V supply.
