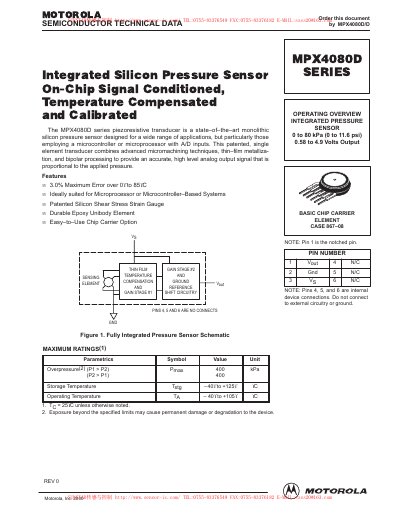

Motorola MPX4080D Pressure Sensor Datasheet
The MPX4080D series is a monolithic silicon piezoresistive pressure transducer designed for applications that use a microcontroller or microprocessor with A/D inputs. It offers a high‑accuracy analog output proportional to applied pressure and includes built‑in temperature compensation and a durable epoxy unibody package.
The document lists electrical ratings, mechanical dimensions, pin assignments, and performance parameters such as pressure range, supply voltage, accuracy, and sensitivity. It also includes ordering information, side‑identification for the pressure and vacuum ports, and legal disclaimer statements.
Motorola MPX4080D specifications
| Pressure range | 0 – 80 kPa (0 – 11.6 psi) |
|---|---|
| Supply voltage (VS) | 4.85 – 5.35 Vdc (typical 5.1 Vdc) |
| Maximum overpressure | 400 kPa |
| Storage temperature | -40°C to +125°C |
| Operating temperature | -40°C to +105°C |
| Maximum error | 3.0% over 0°C to 85°C |
| Sensitivity | 54 mV/kPa |
