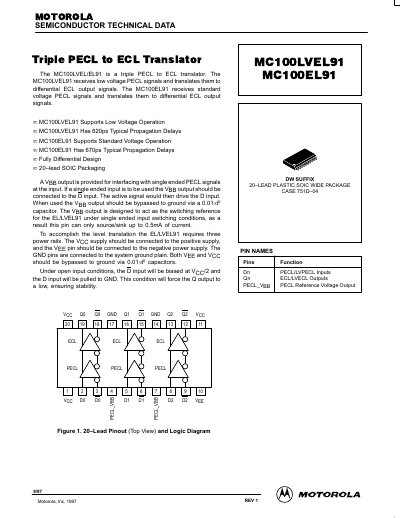

Motorola MC100LVEL91/MC100EL91 Triple PECL to ECL Translator Datasheet
This document is a technical datasheet for the Motorola MC100LVEL91 and MC100EL91 integrated circuits. These devices function as triple PECL to ECL translators, converting low voltage or standard voltage PECL signals into differential ECL output signals. The MC100LVEL91 supports low-voltage operation with a typical propagation delay of 620ps, while the MC100EL91 supports standard voltage operation with a typical delay of 670ps.
Read onlineMotorola MC100EL91 specifications
| Package Type | 20-lead SOIC Wide Package |
|---|---|
| Typical Propagation Delay (MC100LVEL91) | 620ps |
| Typical Propagation Delay (MC100EL91) | 670ps |
Source: Motorola MC100LVEL91/MC100EL91 Triple PECL to ECL Translator Datasheet
All Motorola MC100EL91 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the function of the Vp output pin?
The Vp output acts as the switching reference for the device under single-ended input switching conditions.
From: Motorola MC100LVEL91/MC100EL91 Triple PECL to ECL Translator Datasheet
How much current can the Vp output source or sink?
The Vp output can only source or sink up to 0.5mA of current.
From: Motorola MC100LVEL91/MC100EL91 Triple PECL to ECL Translator Datasheet
What is the function of the Vp output pin?
The Vp output is designed to act as the switching reference for the device under single ended input switching conditions.
From: Motorola MC100LVEL91/MC100EL91 Triple PECL to ECL Translator Datasheet
What capacitor value is required to bypass the VBp output?
The VBp output should be bypassed to ground via a 0.01uF capacitor.
From: Motorola MC100LVEL91/MC100EL91 Triple PECL to ECL Translator Datasheet
