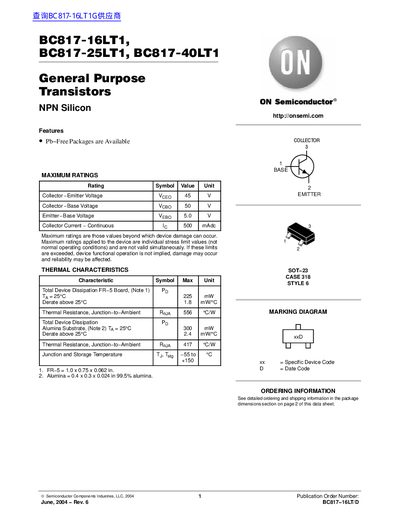

ON Semiconductor BC817-16LT1/25LT1/40LT1 General Purpose Transistors Datasheet

BC817-16LT/D BC817-25LT1, BC817-40LT1 are NPN Silicon General Purpose Transistors with Pb-Free Packages. This document provides the maximum ratings, thermal characteristics, package dimensions, pinout, and ordering information for this transistor.

Brand: BC817-16LT1
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 4
File format: PDF
File size: 60 KB
Published: 10 July, 2012
Updated: 30 September, 2023
Model: BC817-16LT1
MD5 checksum: D7ADBEBAF2B39A40F10D13869986AE8D
PDF: ON Semiconductor BC817-16LT1/25LT1/40LT1 General Purpose Transistors Datasheet PDF

About this manual

This document is a datasheet for the BC817-16LT1, BC817-25LT1, and BC817-40LT1 NPN silicon general-purpose transistors. It details maximum ratings, thermal characteristics, and electrical specifications including DC current gain and saturation voltages.

What's inside

Maximum Ratings
Thermal Characteristics
Electrical Characteristics
Ordering Information
Package Dimensions

Specifications

Collector-Emitter Voltage	45 V
Collector-Base Voltage	50 V
Emitter-Base Voltage	5.0 V
Collector Current	500 mA
Junction Temperature	-55 to +150°C
Current-Gain Bandwidth Product	100 MHz
