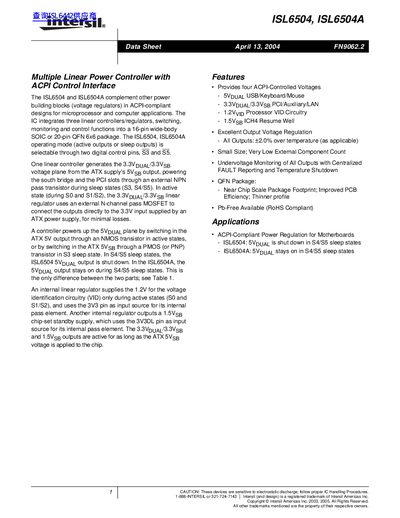

Intersil ISL6504 and ISL6504A Datasheet
The ISL6504 and ISL6504A are multiple‑linear power controllers designed for AC‑PI‑compliant microprocessor and computer applications. They integrate three linear regulators, switching, monitoring and control functions in a 16‑lead SOIC or 20‑lead QFN package.
The devices provide four ACPI‑controlled output voltages (5VSB, 3.3V, 1.2V VID, 1.5V) with built‑in undervoltage monitoring, fault reporting and temperature shutdown. Pin S3 and S5 select active or sleep operating modes, and the ISL6504A keeps the 5VbDUAL output on during S4/S5 sleep states, unlike the ISL6504.
Intersil ISL6504 specifications
| Ambient Temperature Range | 0°C to 70°C |
|---|---|
| Maximum Junction Temperature | 150°C |
| Maximum Storage Temperature | -65°C to 150°C |
| Supply Voltage (V5YGP) Rating | +7.0 V |
| Output Voltage Regulation | ±2.0 % |
All Intersil ISL6504 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the difference between the ISL6504 and ISL6504A regarding the 5VbDUAL output?
In the ISL6504 the 5VbDUAL output is shut down in S4/S5 sleep states, while in the ISL6504A the 5VbDUAL output stays on during those sleep states.
What is the maximum supply voltage the device can tolerate?
The device is rated for a supply voltage up to +7.0 V.
What is the maximum junction temperature of the device?
The maximum junction temperature for the plastic package is 150 °C.
