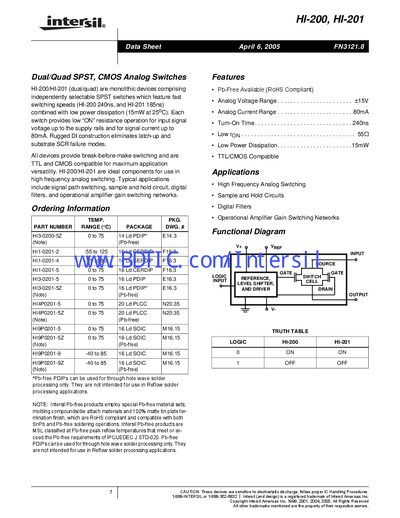

Intersil HI-200/HI-201 Dual/Quad Analog Switch Data Sheet
The HI-200 and HI-201 are monolithic dual/quad SPST CMOS analog switches with fast turn‑on times (240 ns for HI‑200, 185 ns for HI‑201) and low power dissipation (15 mW at 25 °C). They feature low on‑resistance, TTL/CMOS compatible inputs, and break‑before‑make operation, making them suitable for high‑frequency analog switching, sample‑and‑hold circuits, digital filters, and gain‑switching networks.
The datasheet includes detailed pinouts for PDIP, CERDIP, PLCC and SOIC packages, absolute maximum ratings, electrical specifications, test circuits, and application notes. It also lists ordering information, package options, and die characteristics, and notes RoHS‑compliant, Pb‑free construction.
Intersil HI-200 specifications
| Low Power Dissipation | 15 mW |
|---|---|
| On‑Resistance (typical) | 55 Ω (HI‑200), 70 Ω (HI‑201) |
| Operating Temperature Range | -55 °C to 125 °C |
| Package Types | PDIP, CERDIP, PLCC, SOIC |
Source: Intersil HI-200/HI-201 Dual/Quad Analog Switch Data Sheet
All Intersil HI-200 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Are the HI‑200/HI‑201 devices RoHS compliant?
Yes, they are Pb‑free and meet RoHS requirements.
From: Intersil HI-200/HI-201 Dual/Quad Analog Switch Data Sheet
Which package options are offered for the HI‑201?
The HI‑201 is available in CERDIP, PDIP, and SOIC packages.
From: Intersil HI-200/HI-201 Dual/Quad Analog Switch Data Sheet
What is the maximum continuous current for the HI-200/883?
The device can handle up to 25 mA continuous current.
