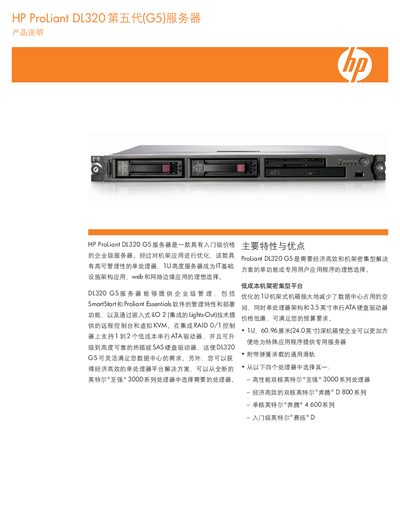

HP DL320 G5 Server User Manual
The HP DL320 G5 is a 1U rack‑mount server designed for cost‑effective, high‑density deployments, offering single‑processor Intel Xeon 3000 series options, up to 8 GB ECC DDR2 memory, and flexible storage with 1‑2 3.5‑inch SAS/SA drives.
This manual covers the server’s standard configuration, technical specifications, installation and wiring guidelines, supported operating systems, management tools such as iLO 2 and HP Systems Insight Manager, and warranty and service options. This manual is written in Chinese.
HP DL320 specifications
| Dimensions (H×W×D) | 4.32 x 42.62 x 60.96 cm (1.70 x 16.78 x 24.0 in) |
|---|---|
| Weight (no drives) | 10.91 kg (24.0 lb) |
| Weight (full config) | 12.27 kg |
| Input voltage range | 30 to 264 V AC |
| Rated input voltage | 100‑120 V AC / 220‑240 V AC |
| Rated input current | 6 A (100‑120 V) / 3 A (220‑240 V) |
| Rated input frequency | 47 to 60 Hz |
| Rated input power | 479 W at 230 V |
| Maximum output power | 420 W |
| Operating temperature | 10 °C to 35 °C (50 °F to 95 °F) |
| Operating relative humidity | 10 % to 90 % |
| Noise level (observer) | 44.1 dBA |
Source: HP DL320 G5 Server User Manual
All HP DL320 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which operating systems are supported by the HP DL320 G5 server?
It supports the latest Microsoft Windows Server, SuSE Linux, and Red Hat Linux operating systems.
How many 3.5‑inch SAS/SA drives can be installed?
The server can be equipped with 1 to 2 × 3.5‑inch SAS/SA drives, providing up to 1.5 TB of total storage.
