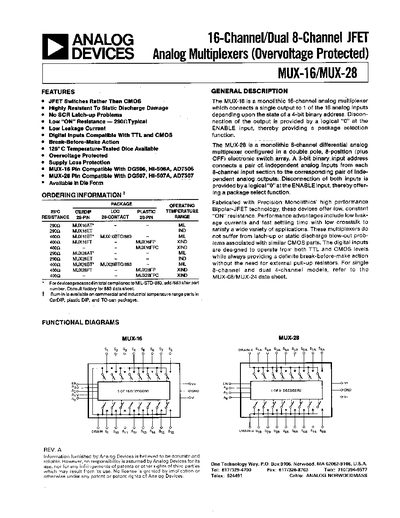

Analog Devices MUX-16/MUX-28 Datasheet
The MUX-16 and MUX-28 are monolithic analog multiplexers that use JFET switches instead of CMOS, offering high resistance to static discharge and no latch‑up problems. The devices provide break‑before‑make action and are pin‑compatible with several Analog Devices parts.
The document lists ordering information, pin connections, truth tables, and detailed electrical characteristics such as on‑resistance, leakage current, supply voltage range, and temperature limits. Typical performance curves and test circuit diagrams are also included.
Analog Devices MUX-28 specifications
| Typical ON resistance | 2900 Ω |
|---|---|
| Digital input compatibility | TTL and CMOS |
| Break‑Before‑Make action | Enabled |
All Analog Devices MUX-28 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical ON resistance of the MUX‑16/MUX‑28?
The typical ON resistance is 2900 Ω.
Are the digital inputs compatible with TTL logic?
Yes, the digital inputs are compatible with both TTL and CMOS levels.
What is the typical ON resistance of the MUX‑16?
The typical ON resistance is about 2.9 kΩ.
