Start here

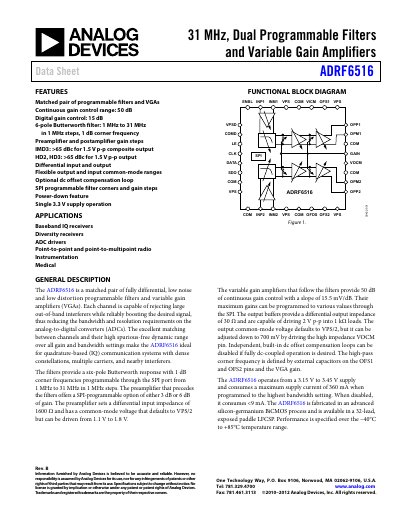

Analog Devices ADRF6516 Dual Programmable Filter and Variable Gain Amplifier Datasheet
The ADRF6516 from Analog Devices combines two fully differential programmable filters with variable gain amplifiers (VGAs) in a single 32‑lead LFCSP package. It offers a six‑pole Butterworth response from 1 MHz to 31 MHz in 1 MHz steps, continuous gain control of 50 dB, and digital gain control of 15 dB, making it suitable for IQ receivers, diversity receivers, ADC drivers, and medical instrumentation.
The device operates from a single 3.15 V‑3.45 V supply, draws up to 360 mA at the highest bandwidth, and provides differential input impedance of 1600 Ω and output impedance of 30 Ω. SPI programming configures filter corners, gain steps, and offset‑compensation loops, while the part includes built‑in dc‑offset compensation and a power‑down feature.
Analog Devices ADRF6516 specifications
| Frequency range | 1 MHz to 31 MHz |
|---|---|
| Continuous gain control range | 50 dB |
| Digital gain control range | 15 dB |
| Supply voltage | 3.15 V to 3.45 V |
| Differential input impedance | 1600 Ω |
| Differential output impedance | 30 Ω |
| Gain slope | 15.5 mV/dB |
| Group delay at 1 MHz | 135 ns |
Source: Analog Devices ADRF6516 Dual Programmable Filter and Variable Gain Amplifier Datasheet
All Analog Devices ADRF6516 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the ADRF6516?
The device operates from 3.15 V to 3.45 V.
From: Analog Devices ADRF6516 Dual Programmable Filter and Variable Gain Amplifier Datasheet
How much continuous gain control does the ADRF6516 provide?
It offers a continuous gain control range of 50 dB.
From: Analog Devices ADRF6516 Dual Programmable Filter and Variable Gain Amplifier Datasheet
What is the selectable frequency range of the ADRF6516 filters?
The filters can be programmed from 1 MHz to 31 MHz in 1 MHz steps.
What supply voltage does the ADRF6516 require?
It operates from a single 3.3 V supply with a permissible range of 3.15 V to 3.45 V.
