Start here

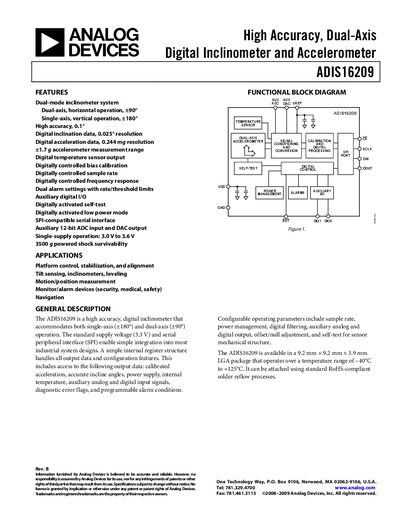

Analog Devices ADIS16209 Digital Inclinometer Datasheet
The ADIS16209 is a high‑accuracy digital inclinometer that supports both single‑axis (‑180°) and dual‑axis (+90°) operation. It provides calibrated acceleration, temperature, auxiliary analog and digital inputs, and programmable alarm conditions via a 3.3 V SPI‑compatible serial interface.
The device is supplied in a 9.2 mm × 9.2 mm × 3.9 mm LGA package, operates from 3.0 V to 3.6 V, and is rated for –40 °C to +125 °C. Typical applications include platform stabilization, tilt sensing, motion measurement, and safety monitoring.
Analog Devices ADIS16209 specifications
| Horizontal Incline Input Range | +90° |
|---|---|
| Vertical Rotation Input Range | -180° to +180° |
| Accelerometer Sensitivity (typical) | 0.244 mg/LSB |
| Power Supply Operating Voltage Range | 3.0 V to 3.6 V |
| Conversion Rate Setting | 2731 SPS |
| Package Dimensions | 9.2 mm × 9.2 mm × 3.9 mm LGA |
Source: Analog Devices ADIS16209 Digital Inclinometer Datasheet
All Analog Devices ADIS16209 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the ADIS16209?
The device operates from 3.0 V to 3.6 V.
From: Analog Devices ADIS16209 Digital Inclinometer Datasheet
What temperature range can the ADIS16209 operate in?
It is rated for –40 °C to +125 °C.
From: Analog Devices ADIS16209 Digital Inclinometer Datasheet
What is the operating voltage range for the ADIS16209?
The device operates from 3.0 V to 3.6 V.
From: Analog Devices ADIS16209 Digital Inclinometer Accelerometer Datasheet
How much shock can the ADIS16209 survive?
It can survive up to 3500 g of shock.
From: Analog Devices ADIS16209 Digital Inclinometer Accelerometer Datasheet
What is the operating voltage range of the ADIS16209?
The device operates from 3.0 V to 3.6 V.
What is the accelerometer measurement range?
The accelerometer can measure up to ±17 g.
