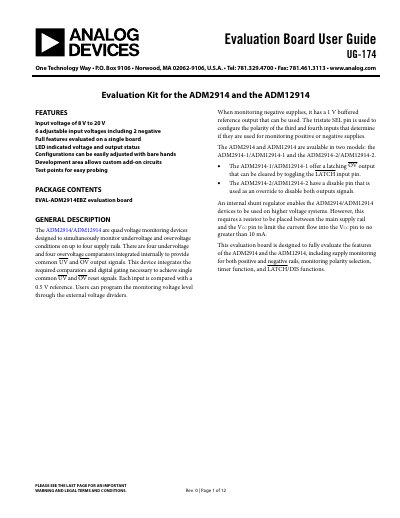

ANALOG DEVICES UG-174: Evaluation Board User Guide for ADM2914 ADM12914
The document provides a user guide for the EVAL-ADM2914EBZ evaluation board, designed to evaluate the features of the ADM2914 and ADM12914 quad voltage monitoring devices. The board allows users to simultaneously monitor undervoltage and overvoltage conditions on up to four supply rails, with configurable inputs for positive and negative voltages.
Read onlineAnalog Devices ADM12914 specifications
| Supply voltage range (VCC) | 2.3 V to 6.0 V |
|---|---|
| Reference output voltage (VREF) | 1 V (typical) |
| Supply current (ICC) | 62 µA typical |
| Threshold accuracy | ±0.8 % |
| Package | 16‑pin QSOP |
Source: Analog Devices ADM12914 Four-Channel Voltage Monitor Datasheet
All Analog Devices ADM12914 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many voltage channels can the ADM12914 monitor?
It can monitor up to four voltage rails, with two dedicated input pins for each channel.
From: Analog Devices ADM12914 Four-Channel Voltage Monitor Datasheet
What is the typical reference voltage output of the ADM12914?
The device provides a 1 V buffered reference output (VREF).
From: Analog Devices ADM12914 Four-Channel Voltage Monitor Datasheet
What is the input voltage range for the evaluation board?
The evaluation board supports an input voltage range of 8 V to 20 V.
From: ANALOG DEVICES UG-174: Evaluation Board User Guide for ADM2914 ADM12914
How many adjustable input voltages does the board provide?
The board provides 6 adjustable input voltages, including 2 negative voltages.
From: ANALOG DEVICES UG-174: Evaluation Board User Guide for ADM2914 ADM12914
How can the ADM12914 be used with supply voltages above 6 V?
An external dropper resistor is placed between the supply rail and the VCC pin to limit current to less than 10 mA, enabling the internal shunt regulator to operate with higher voltages.
From: Analog Devices ADM12914 Quad Voltage Supervisor Datasheet
What is the typical supply current of the device?
The typical supply current is 62 µA at 25 °C.
From: Analog Devices ADM12914 Quad Voltage Supervisor Datasheet
