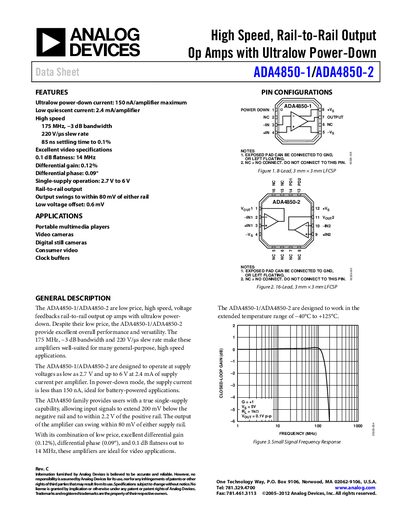

Analog Devices ADA4850-1/ADA4850-2 Datasheet
The ADA4850‑1 and ADA4850‑2 are low‑price, high‑speed voltage‑feedback op‑amps offering rail‑to‑rail output and single‑supply operation from 2.7 V to 6 V. They provide a –3 dB bandwidth of up to 175 MHz, a slew rate of 220 V/µs, and an output swing within 80 mV of either rail, making them suitable for video and multimedia applications.
The datasheet includes detailed specifications, absolute maximum ratings, thermal resistance data, pin configurations, and typical performance graphs for various supply voltages and loads. It also contains application notes for portable multimedia players, video cameras, and clock buffers.
Analog Devices ADA4850-1 specifications
| Power‑down current (max) | 150 nA per amplifier |
|---|---|
| Quiescent current (typical) | 2.4 mA per amplifier |
| Supply voltage range | 2.7 V to 6 V |
| –3 dB bandwidth (typical, +3 V supply) | 175 MHz |
| Slew rate (typical, +5 V supply) | 220 V/µs |
All Analog Devices ADA4850-1 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the power‑down current of the ADA4850‑1?
The power‑down current is less than 150 nA per amplifier.
What supply voltage range does the ADA4850‑1 operate on?
It operates from 2.7 V up to 6 V on a single supply.
What is the power‑down current of the ADA4850‑1/ADA4850‑2?
The power‑down current is less than 150 nA per amplifier.
What supply voltage range can the ADA4850‑1/ADA4850‑2 operate from?
It operates from 2.7 V up to 6 V.
