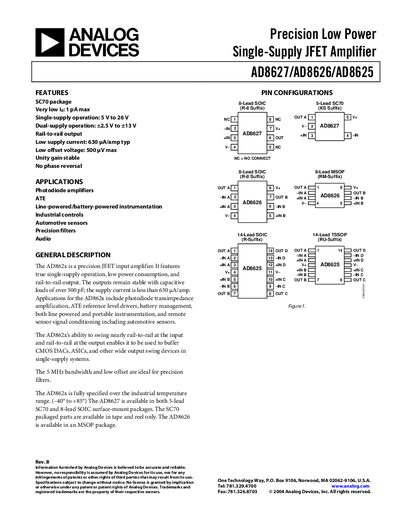

Analog Devices AD8627/AD8626/AD8625 Precision Low Power Single-Supply JFET Amplifier Handbook
The AD862x family are precision low‑power single‑supply JFET input amplifiers with rail‑to‑rail output. They operate from 5 V to 26 V (single‑supply) or ±2.5 V to ±13 V (dual‑supply) and consume less than 630 pA per amp. Features include very low input bias current, low offset voltage, high CMRR, and stable unity‑gain operation.
The document lists detailed electrical characteristics, absolute maximum ratings, typical performance curves, application examples such as photodiode transimpedance amplifiers and automotive sensors, pin‑out tables for multiple package styles, and an ordering guide with part numbers for SC70, SOIC, MSOP and TSSOP packages.
Analog Devices AD8627 specifications
| Supply Voltage (single‑supply) | 5 V to 26 V |
|---|---|
| Supply Voltage (dual‑supply) | +2.5 V to +13 V |
| Typical Supply Current | 630 pA/amp |
| Input Offset Voltage (typical) | 0.5 mV |
| Input Bias Current (typical) | 1 pA |
| Gain‑Bandwidth Product | 5 MHz |
| Slew Rate | 5 V/µs |
| Maximum Output Current | 10 mA |
| Operating Temperature Range | -40 °C to +85 °C |
All Analog Devices AD8627 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for these amplifiers?
They are specified for an operating temperature range of –40 °C to +85 °C.
From: Analog Devices AD8627/AD8626/AD8625 Precision Low Power Single-Supply JFET Amplifier Handbook
What is the supply voltage range for the AD8625/AD8626/AD8627?
The devices operate from 5 V to 26 V on a single supply, or from +2.5 V to +13 V on a dual supply.
What is the typical supply current of these amplifiers?
Typical supply current is 630 pA per amp of output current.
