3M Scotch 23 Manuals

ManualLib has 4 documents for the 3M Scotch 23 (Other): 2 product leaflets, 2 datasheets. Every file can be read online or downloaded as a PDF for free.

Product Leaflet 2Datasheet 2

Key facts

Brand
3M
Model
Scotch 23
Category
Other
Industry
Industrial
Documents
4
Languages
EN
Last added
2026-11-09

Start here

3M Scotch 23 Rubber Splicing Electrical Tape Quick Reference Guide

3M Scotch 23 Rubber Splicing Electrical Tape Quick Reference Guide

Product Leaflet 1 pages · 81 KB · EN

3M Scotch 23 Rubber Splicing Electrical Tape is a highly conformable, self-fusing electrical tape made from Ethylene Propylene Rubber (EPR) backing. It fuses to itself to create a secure, water resistant, tight bond and can be wrapped tightly over most profiles, including awkward or irregular shapes.

Typical applications include sealing and protecting electrical connections, termination sealing of high voltage cables, jacketing for high voltage splices and terminations, and primary insulation for cable jointing up to 69 kV or building stress cones up to 35 kV. The tape is compatible with polyethylene, oil based rubber, butyl rubber, PVC, and cross linked polyethylene insulation.

Read online

3M Scotch 23 specifications

ColourBlack
BackingEthylene Propylene Rubber (EPR)
AdhesiveSelf-Fusing Only
Thickness (Overall)0.76mm
Ultimate Elongation1,000%
Continuous Temperature Rating90°C
Short-Term Temperature Rating130°C
Dielectric Strength31.5 mV/m
Tensile Strength1.4 KN/m

Source: 3M Scotch 23 Rubber Splicing Electrical Tape Quick Reference Guide

All 3M Scotch 23 documents by type

Datasheet 2

Ratings, dimensions and ordering codes, for selection and design work.

Questions answered in these manuals

What is 3M Scotch 23 tape used for?

It is used for splicing and terminating medium voltage cables.

From: 3M Scotch 23 Rubber Splicing Electrical Tape Quick Reference Guide

What is the continuous temperature rating?

The continuous temperature rating is 90°C.

From: 3M Scotch 23 Rubber Splicing Electrical Tape Quick Reference Guide

What is the maximum voltage rating for Scotch 23 tape?

Scotch 23 tape can be used for splices up to 69 kV.

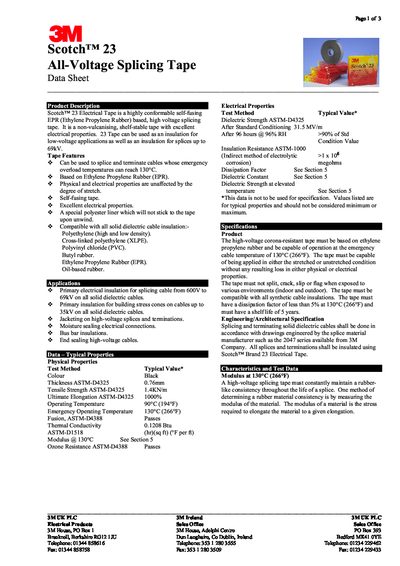

From: 3M Scotch 23 All-Voltage Splicing Tape Data Sheet

What is the recommended shelf life of Scotch 23 tape?

Under normal storage conditions, the tape has a 5‑year shelf life.

From: 3M Scotch 23 All-Voltage Splicing Tape Data Sheet

What temperature can Scotch 23 tape withstand?

Scotch 23 tape can be used at temperatures up to 130 °C.

From: 3M - Order code Size Price each 131-6019 19mm x 9.15m 131-6020 25mm x 9.15m 131-6021 38mm x 9.15m Scotch

What is the maximum voltage rating of Scotch 23 tape?

The tape is rated for jointing applications up to 69 kV.

From: 3M - Order code Size Price each 131-6019 19mm x 9.15m 131-6020 25mm x 9.15m 131-6021 38mm x 9.15m Scotch
