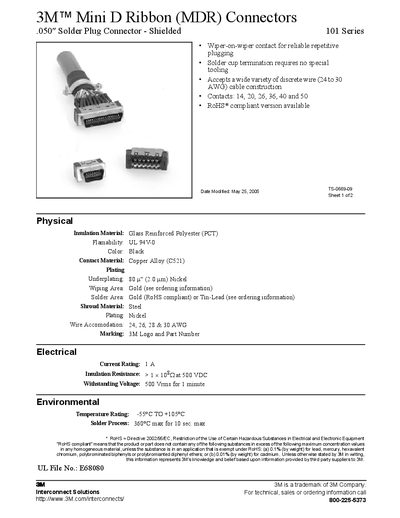

3M 101 Series Mini D Ribbon (MDR) Connectors Handbook
Product Leaflet 3 pages · 276 KB · EN
The 3M 101 Series Mini D Ribbon (MDR) connectors are .050" solder‑plug, shielded connectors designed for reliable repetitive plugging. They accept 24‑30 AWG wire and are available in RoHS‑compliant versions.
The document provides physical, electrical and environmental specifications, detailed contact dimensions, ordering part numbers, and warranty information for the connectors.
3M 101 Series specifications
| Current Rating | 1 A |
|---|---|
| Insulation Resistance | > ] x 108Q at 500 VDC |
| Withstanding Voltage | 500 Vrms for 1 minute |
| Temperature Rating | -55 °C to +105 °C |
| Solder Process Max Temperature | 360 °C for 10 s max |
| Insulation Material | Glass Reinforced Polyester (PCT) |
| Flammability Rating | UL 94V‑0 |
| Contact Material | Copper Alloy (C521) |
| Underplating | 80 µm (2.0 µm) Nickel |
| Wiping Area | Gold |
| Shroud Material | Steel |
| Wire Accommodation | 24, 26, 28 & 30 AWG |
Source: 3M 101 Series Mini D Ribbon (MDR) Connectors Handbook
