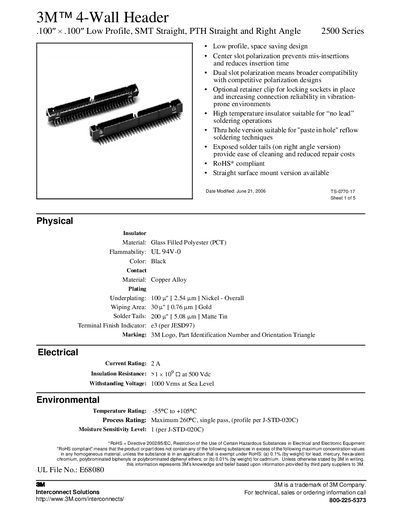

3M 2500 Series 4-Wall Header Datasheet
The 3M 4‑Wall Header 2500 Series provides low‑profile, space‑saving interconnect solutions for SMT, PTH straight and right‑angle applications. Features include dual‑slot polarization, optional retainer clips, and RoHS compliance for reliable performance in vibration‑prone environments.
The sheet lists physical characteristics (glass‑filled polyester insulator, copper alloy contacts), electrical ratings (2 A current, >10⁹ Ω insulation resistance, 1000 Vrms withstanding voltage), and environmental limits (‑55 °C to +105 °C). Ordering information, packaging options, and warranty terms are also provided.
3M 2500 Series specifications
| Insulator Material | Glass Filled Polyester (PCT) |
|---|---|
| Flammability | UL 94V-0 |
| Contact Material | Copper Alloy |
| Current Rating | 2 A |
| Withstanding Voltage | 1000 Vrms at sea level |
| Temperature Rating | -55 °C to +105 °C |
| Process Rating | Maximum 260 °C single pass (J‑STD‑020C) |
| Moisture Sensitivity Level | Level 1 (per J‑STD‑020C) |
All 3M 2500 Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the current rating of the 4‑Wall Header 2500 Series?
The connector is rated for a continuous current of 2 A.
Is the 4‑Wall Header RoHS compliant?
Yes, the product is RoHS compliant as stated in the data sheet.
What is the current rating of the 3M 2500 Series 4‑Wall Header?
The connector is rated for a continuous current of 2 A.
Is the 3M 4‑Wall Header RoHS compliant?
Yes, the product is RoHS compliant as stated in the specifications.
