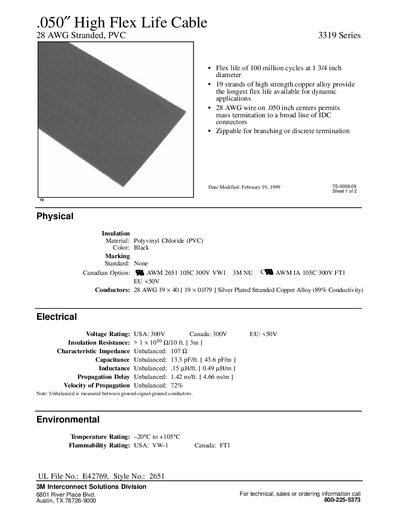

3M 3319 Series 050″ High Flex Life Cable Manual
The 3319 Series .050" High Flex Life Cable is a 28 AWG stranded PVC cable designed for dynamic applications with a flex life of 100 million cycles. It features 19 high‑strength copper‑alloy strands and a .050‑inch center spacing for easy termination to IDC connectors.
The document lists detailed electrical, environmental, and mechanical specifications, including voltage ratings, impedance, capacitance, and temperature range, as well as part numbers, dimensions, and ordering instructions.
3M 3319 Series specifications
| Insulation Material | Polyvinyl Chloride (PVC) |
|---|---|
| Color | Black |
| Voltage Rating (USA/Canada) | 300 V |
| Insulation Resistance | > 1 × 10¹⁹ Ω/10 ft |
| Characteristic Impedance (Unbalanced) | 107 Ω |
| Capacitance (Unbalanced) | 13.3 pF/ft |
| Inductance (Unbalanced) | 0.15 µH/ft |
| Propagation Delay (Unbalanced) | 1.42 ns/ft |
| Velocity of Propagation (Unbalanced) | 72 % |
| Temperature Rating | –20 °C to +105 °C |
| Flammability Rating (USA) | VW‑1 |
| Flex Life | 100 million cycles at 1 ¾" diameter |
