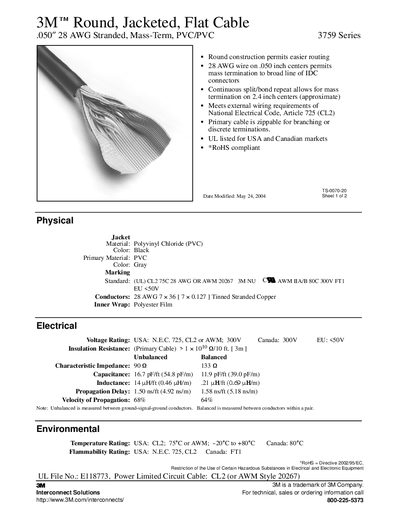

3M 3759 Series Round Jacketed Flat Cable Product Leaflet
The 3M 3759 Series round jacketed flat cable features a .050" 28 AWG stranded conductor layout, PVC jacket, and a split/bond construction that enables mass termination on IDC connectors. It meets NEC Article 725 (CL2) requirements and is UL listed for U.S. and Canadian markets, with RoHS compliance.
The document provides detailed physical dimensions, electrical characteristics such as impedance, capacitance, and voltage ratings, as well as environmental limits, ordering options, and warranty terms. It is intended for designers and installers who need precise cable data for system integration.
3M 3759 Series specifications
| Conductor size | .050" 28 AWG |
|---|---|
| Number of conductors | 7 × 36 (7 × 0.127 mm) |
| Voltage rating (USA) | 300 V (CL2/AWM) |
| Impedance (unbalanced) | 90 Ω |
| Capacitance (unbalanced) | 16.7 pF/ft |
| Inductance (unbalanced) | 14 µH/ft |
| Propagation delay (unbalanced) | 1.50 ns/ft |
| Temperature rating (USA) | -20 °C to +80 °C (CL2) / 75 °C (AWM) |
| Flammability rating (USA) | NEC 725, CL2 |
| UL listing | UL listed for USA and Canada |
| RoHS compliance | Yes |
