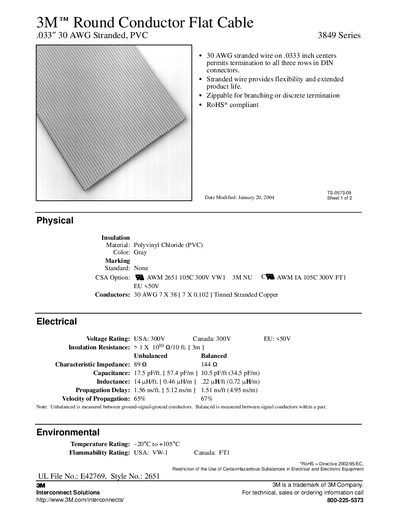

3M 3849 Series Round Conductor Flat Cable Manual
The 3M 3849 Series round‑conductor flat cable is a .033" 30 AWG stranded PVC cable designed for termination to all three rows in DIN connectors. The cable offers flexibility, RoHS compliance, and a standard roll length of 100 ft.
The document provides physical, electrical and environmental characteristics, ordering details, and warranty terms for the product.
3M 3849 Series specifications
| Conductor type | 30 AWG 7 × 38 (7 × 0.102) tinned stranded copper |
|---|---|
| Insulation material | Polyvinyl Chloride (PVC) |
| Color | Gray |
| Voltage rating | USA 300 V, Canada 300 V, EU < 50 V |
| Temperature rating | -20 °C to +105 °C |
| Flammability rating | USA VW‑1, Canada FT1 |
| Capacitance | 17.5 pF/ft (57.4 pF/m) |
| Inductance | 14 µH/ft (0.46 µH/m) |
| Propagation delay | 1.56 ns/ft (5.12 ns/m) |
| Velocity of propagation | 65 % of speed of light |
| Standard roll length | 100 ft per roll |
All 3M 3849 Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the voltage rating of the 3M 3849 Series flat cable?
The cable is rated for 300 V in the USA and Canada, and less than 50 V in the EU.
What temperature range can the cable operate in?
It can be used from –20 °C up to +105 °C.
What is the voltage rating of the 3M 3849 Series .033″ round conductor flat cable?
It is rated for 300 V in the USA and Canada, and less than 50 V in the EU.
From: 3M 3849 Series .033″ Round Conductor Flat Cable Datasheet
What temperature range can the cable operate in?
The cable can be used from –20 °C up to +105 °C.
From: 3M 3849 Series .033″ Round Conductor Flat Cable Datasheet
